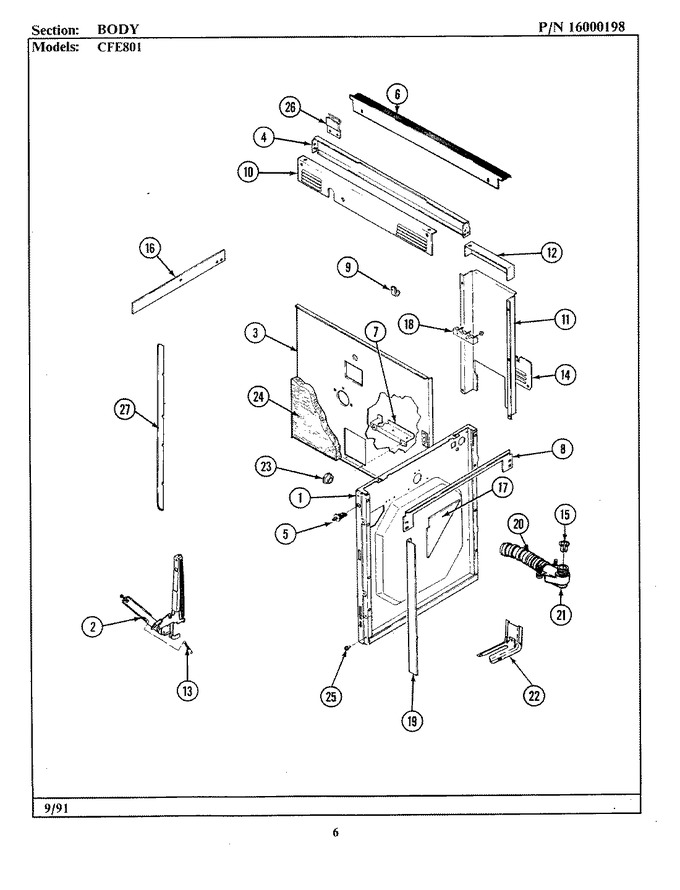

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 1 | 3601F161-80 | Baffle, Oven Door | 00 |
|
- | ||||
| 1 | 4009W083-80 | Lining, Inner Side - L | 00 |
|
- | ||||
| 1 | 4009W084-80 | Lining, Inner Side - R | 00 |
|
- | ||||
| 1 | 7103P040-60 | Nut, Snap (wht) | 00 |
|
- | ||||
| 1 | 7103P045-60 | Nut, Nylon | 00 |
|
- | ||||
| 1 | 7107P017-60 | Rivet | 00 |
|
- | ||||
| 2 | 7106P029-60 | Hinge, Door | 00 |
|
- | ||||
| 2 | WP4159193 | Screw (Replaces: 7101P115-60) | 00 |
|
$ 4.29 | ||||
| 3 | 4002F103-80 | Back, Main | 00 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 4 | WP4159193 | Screw (Replaces: 7118P004-60) | 00 |
|
$ 4.29 | ||||
| 4 | 3802F071-60 | Brace, Main Top | 00 |
|
- | ||||
| 5 | 7403P105-60 | Switch, Push (oven Lamp) | 00 |
|
- | ||||
| 6 | 7706P009-60 | Filler, Strip | 00 |
|
- | ||||
| 7 | 3605F163-80 | Plate Conduit | 00 |
|
- | ||||
| 8 | 3807F194-80 | Support, Panel Unit | 00 |
|
- | ||||
| 9 | 7111P002-60 | Clamp, Wire 3/4 | 00 |
|
- | ||||
| 10 | 3604F097-80 | Shield, Housing | 00 |
|
- | ||||
| 11 | 4011F051-51 | Housing, Wire | 00 |
|
- | ||||
| 12 | 4005F082-80 | Cover, Housing | 00 |
|
- | ||||
| 13 | 04000040 | Spring, Mini-stanley | 00 |
|
- | ||||
| 14 | 4005F361-51 | Cover Access | 00 |
|
- | ||||
| 15 | 7109P002-60 | Washer | 00 |
|
- | ||||
| 15 | 8018P002-60 | Sleeve, Tube | 00 |
|
- | ||||
| 16 | 3601F214-51 | Baffle Side Panel | 00 |
|
- | ||||
| 17 | 7803P057-60 | Spring | 00 |
|
- | ||||
| 18 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 00 |
|
Immediately | $ 31.65 | |||
| 19 | 2618F071-80 | Panel, Side Right | 00 |
|
- | ||||
| 19 | 2618F072-80 | Panel, Side Left | 00 |
|
- | ||||
| 20 | 3414F066-51 | Tubing, Conduit | 00 |
|
- | ||||
| 21 | 7417P005-60 | Connector, Conduit | 00 |
|
- | ||||
| 22 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 00 |
|
$ 26.33 | ||||
| 22 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 00 |
|
Immediately | $ 4.69 | |||
| 23 | 8008P019-60 | Grommet | 00 |
|
- | ||||
| 24 | 4804F020-60 | Insulation - Rear | 00 |
|
- | ||||
| 25 | WP4159193 | Screw (Replaces: 7101P115-60) | 00 |
|
$ 4.29 | ||||
| 26 | 7706P281-60 | Extrusion,top Hinge | 00 |
|
- | ||||
| 27 | 7101P154-60 | Screw, Ph Flat Hd | 00 |
|
- | ||||
| 27 | 7706P042-60 | Trim, Cabinet Front | 00 |
|
- |
