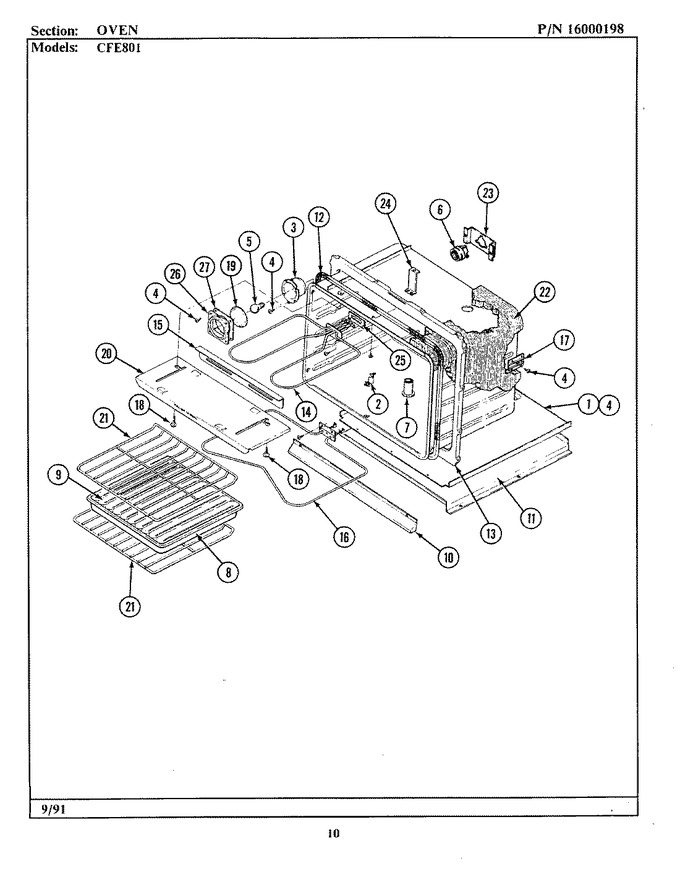

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3804F102-80 | Retainer, Bottom Insulation | 00 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 2 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 00 |
|
Immediately | $ 11.07 | |||
| 3 | 7201P014-60 | Gasket, Housing | 00 |
|
- | ||||
| 3 | 4001F020-23 | Housing, Lamp | 00 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 5 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 00 |
|
Immediately | $ 1.98 | |||
| 6 | 3604F007-80 | Shield, Light Receptacle | 00 |
|
- | ||||
| 6 | 7408P002-60 | Receptacle, Lamp | 00 |
|
- | ||||
| 7 | 7505P041-60 | Catalyst Burner | 00 |
|
- | ||||
| 7 | 8026A007-60 | Tube, Vent | 00 |
|
- | ||||
| 8 | 4396923 | Pan, Broiler (Replaces: 3401F015-15) | 00 |
|
Immediately | $ 52.04 | |||
| 9 | 4396923 | Insert, Broil Pan (Replaces: 3413F012-15) | 00 |
|
Immediately | $ 52.04 | |||
| 10 | 3604W152-70 | Shield,lower Vent (blk) | 00 |
|
- | ||||
| 11 | 3604F184-80 | Shield Bottom | 00 |
|
- | ||||
| 12 | 7201P036-60 | Gasket, Oven | 00 |
|
$ 118.90 | ||||
| 13 | 2201F061-19 | Front, Oven Upper | 01 |
|
- | ||||
| 13 | 2201F061-23 | Front, Oven Upper | 00 |
|
- | ||||
| 14 | 8004P013-60 | Clip, Broil Element Support | 00 |
|
- | ||||
| 14 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 00 |
|
$ 160.58 | ||||
| 15 | 3807F176-15 | Support, Broil Element | 00 |
|
- | ||||
| 16 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 00 |
|
$ 133.20 | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 00 |
|
Immediately | $ 6.85 | |||
| 17 | 3807F205-45 | Support, Oven Rear | 00 |
|
- | ||||
| 18 | 7101P287-60 | Screw, Metal Grounding | 00 |
|
$ 12.03 | ||||
| 19 | 7902P057-60 | Glass, Lamp Guard | 00 |
|
- | ||||
| 20 | 3604F092-45 | Shield, Broil | 00 |
|
- | ||||
| 21 | 7801P032-60 | Rack | 00 |
|
- | ||||
| 22 | 4804F008-60 | Insulation - Top | 00 |
|
- | ||||
| 22 | 4804F024-60 | Insulation | 00 |
|
- | ||||
| 23 | 3801F024-51 | Bracket | 00 |
|
- | ||||
| 24 | 3801F093-45 | Bracket, Burner Box | 00 |
|
- | ||||
| 25 | 7201P003-60 | Gasket, Element | 00 |
|
- | ||||
| 26 | 3804F012-45 | Retainer, Lamp Guard | 00 |
|
- | ||||
| 27 | 7201P015-60 | Gasket, Lamp Retainer | 00 |
|
- |
