SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Internal Controls


05 - Oven


06 - Top Assembly

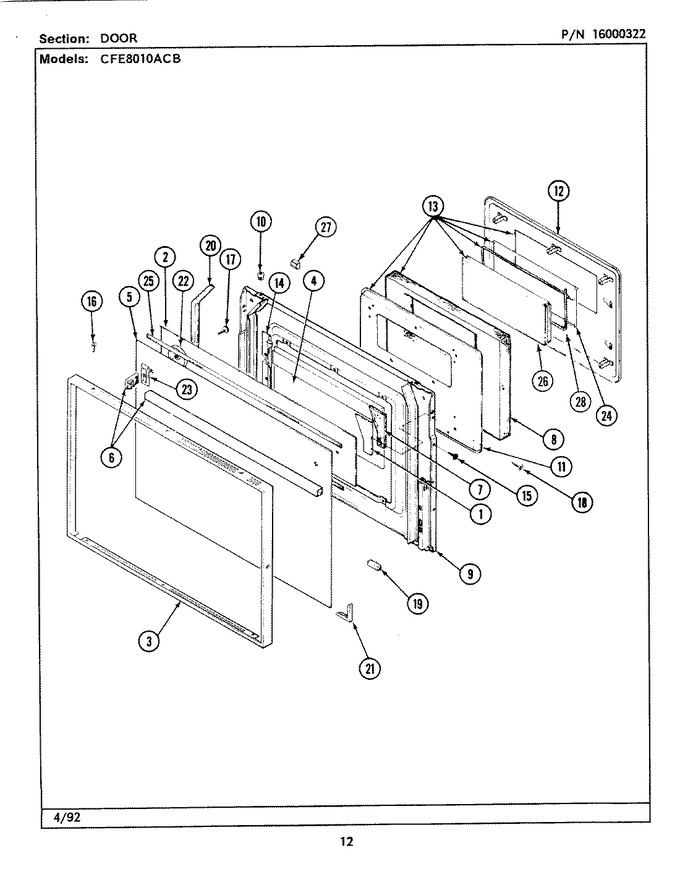

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F159-70		Baffle, Corner (left)	05	Appelez-nous	-
1	3601F158-70		Baffle,corner (right)	05	Appelez-nous	-
2	3601F170-45		Baffle, Door Handle	05	Appelez-nous	-
3	7706P246-60		Frame, Door	05	Appelez-nous	-
4	7902P097-60		Glass, Inner	05			$ 63.87
5	7902P271-60		Glass, Outer	05	Appelez-nous	-
6	7701P045-60		Handle, Door	05	Appelez-nous	-
7	7002P106-60		Insulation Door	05	Appelez-nous	-
8	4804F006-60		Insulation Door Pad	05	Appelez-nous	-
9	8114P274-60		Label (cleaning Inst.)	05	Appelez-nous	-
9	2402W186-19		Lining Door	05	Appelez-nous	-
10	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	05			$ 9.89
11	2410F016-51		Pad, Inner	05	Appelez-nous	-
12	2410W041-19		Pad, Door	05	Appelez-nous	-
13	WP7101P126-60		Screw   (Replaces: 7101P061-60)	05		Immediately	$ 6.85
13	2410A041-19		Pad, Assy.	05	Appelez-nous	-
14	3804F051-80		Retainer, Glass	05	Appelez-nous	-
15	7107P017-60		Rivet	05	Appelez-nous	-
16	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	05		Immediately	$ 6.85
17	WP3400074		Screw   (Replaces: 7101P068-60)	05			$ 6.47
18	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	05		Immediately	$ 6.85
19	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	05			$ 11.95
20	7208P002-60		Seal	05	Appelez-nous	-
21	8010P045-60		Spacer, Glass Corner	05	Appelez-nous	-
22	8010P051-60		Spacer, Baffle	05	Appelez-nous	-
23	8010P052-60		Spacer, Door Handle	05	Appelez-nous	-
24	3804F022-45		Retainer	05	Appelez-nous	-
25	8270P081-60		Tape, Foil 16 3/16``	05	Appelez-nous	-
25	4870P002-60		Foam Tape	05	Appelez-nous	-
26	7902S303-60		Window Pak	05	Appelez-nous	-
27	8003P009-60		Bumper, Door (square)	05	Appelez-nous	-
28	7201P018-60		Gasket, Window	05	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
