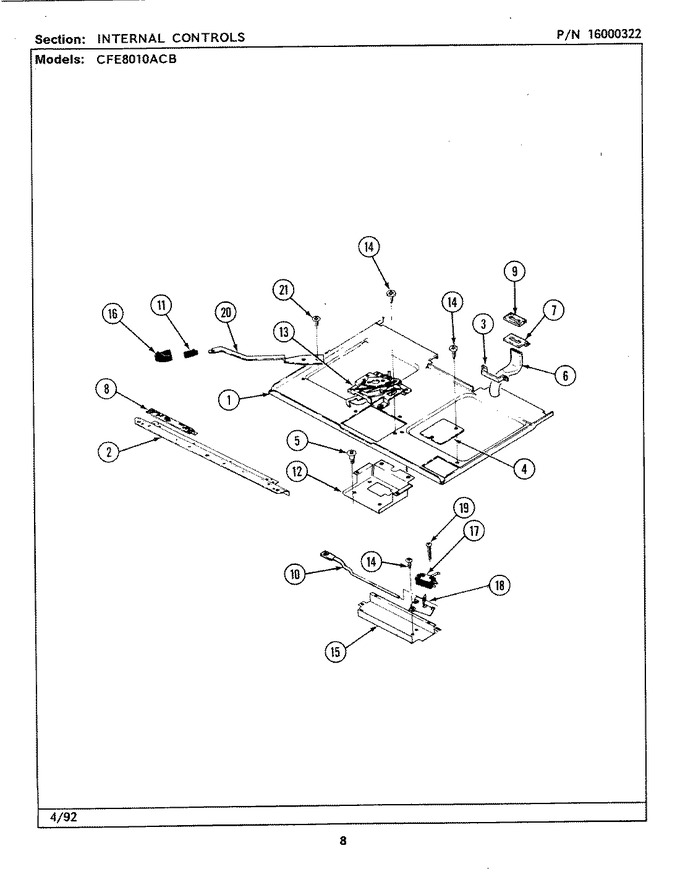

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4011F198-80		Bottom, Burner Box	05	Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)	05		Immediately	$ 6.85
2	WP4159193		Screw   (Replaces: 7118P004-60)	05			$ 4.29
2	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	05			$ 15.94
2	4012F018-80		Front,burner Box Bottom	05	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	05		Immediately	$ 6.85
3	3801F122-45		Bracket, Vent Tube	05	Appelez-nous	-
4	4005F364-51		Cover, Switch	05	Appelez-nous	-
5	7116P003-60		Bolt	05	Appelez-nous	-
6	8026P012-60		Tube, Vent	05	Appelez-nous	-
7	3801F126-45		Bracket, Seal	05	Appelez-nous	-
8	3604F149-80		Shield, Terminal	05	Appelez-nous	-
9	7201P028-60		Gasket, Vent	05	Appelez-nous	-
10	7807P012-60		Link, Door Lock	05	Appelez-nous	-
11	7112P003-60		Clip, Latch Handle	05	Appelez-nous	-
12	3807F408-45		Support, Catch Assy.	05	Appelez-nous	-
13	8002P020-60		Catch Assy.	05	Appelez-nous	-
13	3604F159-45		Shield Insulation, Catch	05	Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	05		Immediately	$ 6.85
15	3818F027-45		Channel, Switch	05	Appelez-nous	-
16	7701P088-60		Handle, Latch (blk)	05	Appelez-nous	-
17	7003P039-60		Insulation, Switch	05	Appelez-nous	-
17	7003P019-60		Insulation, Switch (upper)	05	Appelez-nous	-
17	7403P045-60		Switch, Door Lock	05	Appelez-nous	-
18	3807F193-45		Support, Lock Switch	05	Appelez-nous	-
19	7101P031-60		Screw	05	Appelez-nous	-
20	8009P019-60		Lever, Door Lock	05	Appelez-nous	-
21	WP4159193		Screw   (Replaces: 7101P018-60)	05			$ 4.29

    View Diagram in Separate Window       Print Part List
