SELECT A DIAGRAM

01 - Body


02 - Door


03 - Door (ser. Pre. 12)


04 - Internal Controls


05 - Oven


06 - Top Assembly


07 - Wiring Information

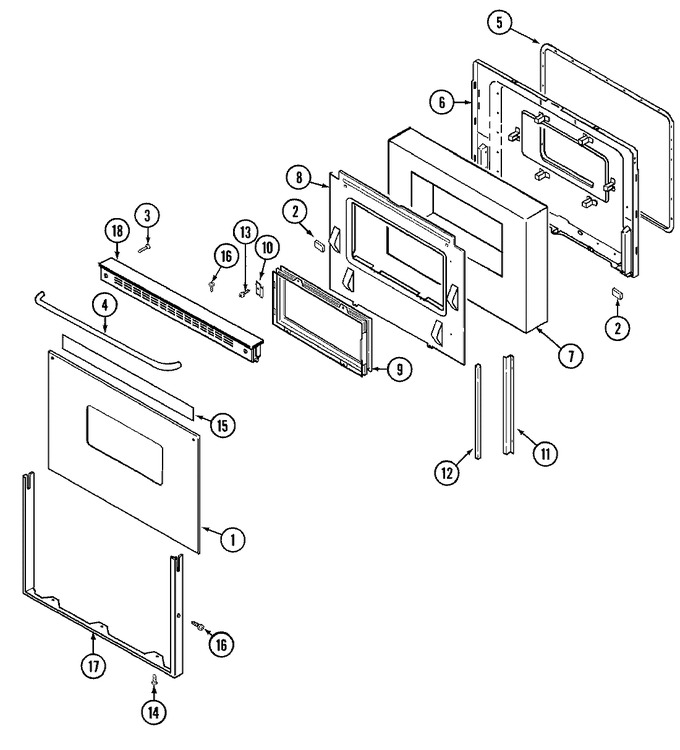

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P361-60		Glass, Door (outer/blk)	10	Appelez-nous	-
2	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
3	7101P326-60		Screw	10	Appelez-nous	-
4	7701P149-60		Handle, Oven Door (blk)	10	Appelez-nous	-
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
6	2402W209-19		Lining, Door	10	Appelez-nous	-
6	7103P136-60		Nut, Snap	10	Appelez-nous	-
6	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
6	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
7	4804F051-60		Insulation, Door	10	Appelez-nous	-
8	3601F236-47		Baffle, Door	10	Appelez-nous	-
8	7103P045-60		Nut, Nylon	10	Appelez-nous	-
9	7907P021-60		Window Asy.	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	3805F002-34		Clamp, Window Assy.	10	Appelez-nous	-
11	3818F052-51		Channel, Air	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	7208P002-60		Seal	10	Appelez-nous	-
13	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
16	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
17	7706P309-60		Frame, Door (blk)	10	Appelez-nous	-
18	7706P305-60		Trim, Door (upper-blk)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
