SELECT A DIAGRAM

01 - Body


02 - Door


03 - Door (ser. Pre. 12)


04 - Internal Controls


05 - Oven


06 - Top Assembly


07 - Wiring Information

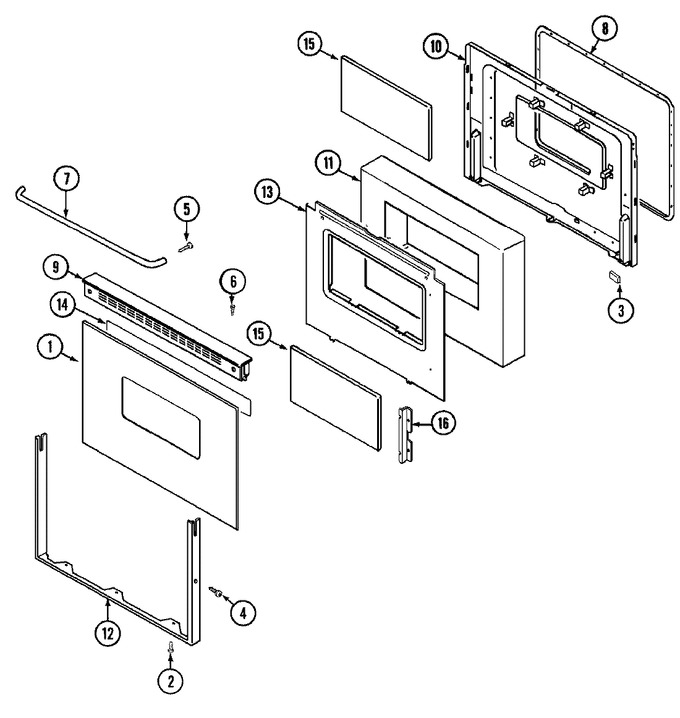

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P361-60		Glass, Door (outer/blk)	12	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
3	8010P085-60		Spacer, Rubber	12	Appelez-nous	-
4	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	12			$ 15.94
5	7101P326-60		Screw	12	Appelez-nous	-
6	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	12			$ 15.94
7	7701P149-60		Handle, Oven Door (blk)	12	Appelez-nous	-
8	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	12		Immediately	$ 77.61
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
9	7706P305-60		Trim, Door (upper-blk)	12	Appelez-nous	-
10	74003244		Lining, Door	27	Appelez-nous	-
10	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	12			$ 9.89
10	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	12			$ 9.89
10	7103P136-60		Nut, Snap	12	Appelez-nous	-
10	2402W209-19		Lining, Door	12	Appelez-nous	-
11	74001842		Insulation, Door	12	Appelez-nous	-
12	7706P309-60		Frame, Door (blk)	12	Appelez-nous	-
13	74001843		Baffle, Door	12	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
14	8270P090-60		Tape, Foil (3`` Wide)	12	Appelez-nous	-
15	74001841		Glass, Inner	12	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
16	74001844		Retainer, Glass	12	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
