SELECT A DIAGRAM
01 - Blower Plenum

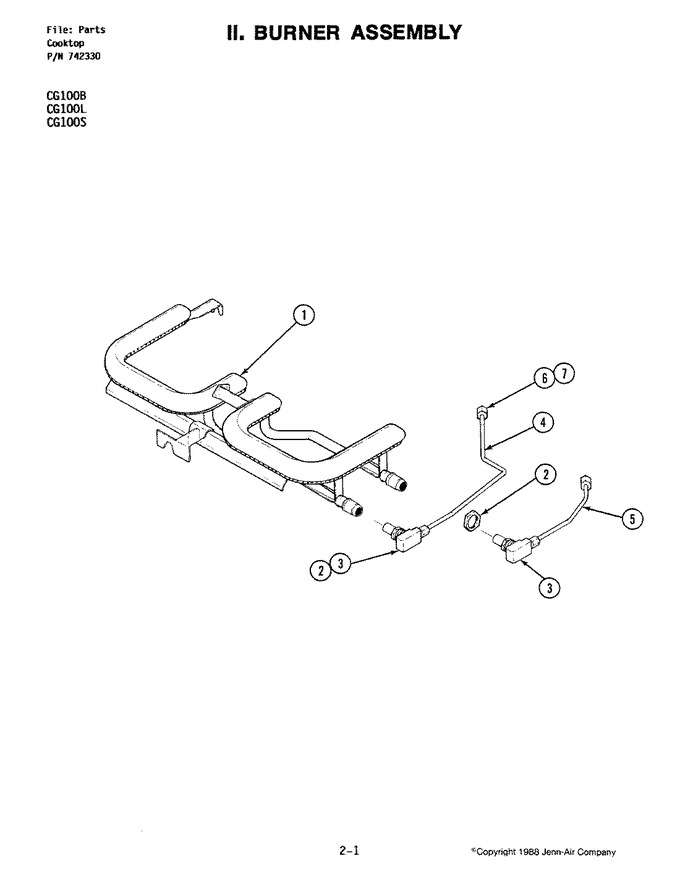

02 - Burner Assembly
03 - Control Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y712601 | Burner, Grill | 2 |
|
$ 304.99 | ||||
| 1 | Y712601 | Burner, Grill (Replaces: Y712301) | 1 |
|
$ 304.99 | ||||
| 2 | Y704588 | Nut, 3/4`` Hex | 1 |
|
- | ||||
| 3 | 704530 | Orifice | 1 |
|
- | ||||
| 4 | 704701 | Tube, Rear | 2 |
|
- | ||||
| 4 | 704509 | Tube (lr) | 1 |
|
- | ||||
| 5 | Y704702 | Tube, Front (lf) | 2 |
|
- | ||||
| 5 | Y704508 | Tube (lf) | 1 |
|
- | ||||
| 6 | WP245183 | Nut, Compression (Replaces: Y704589) | 1 |
|
$ 7.01 | ||||
| 7 | 704590 | Sleeve | 1 |
|
- | ||||
| 7 | 704328 | Washer, Flat | 1 |
|
- |
