SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Assembly

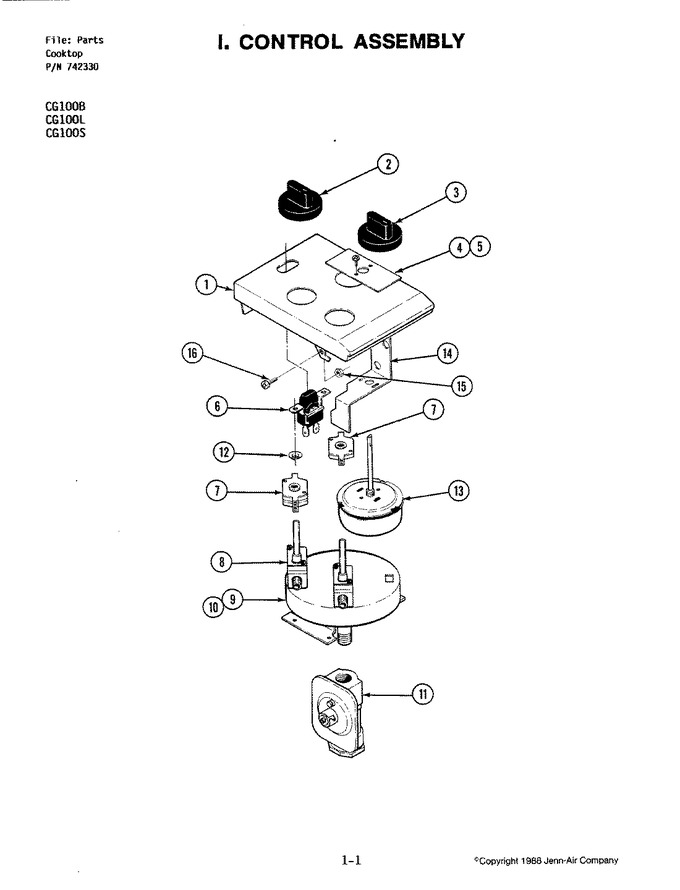

03 - Control Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704382 | Escutcheon | 1 |
|
- | ||||
| 2 | WP71001641 | Knob, Switch (Replaces: Y704539) | 1 |
|
Immediately | $ 15.68 | |||
| 3 | 704208 | Knob, Clock | 1 |
|
- | ||||
| 4 | 704738 | Plate, Timer | 1 |
|
- | ||||
| 5 | 703534 | Screw | 1 |
|
- | ||||
| 6 | Y704573 | Switch, Fan (blk) | 1 |
|
- | ||||
| 7 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 1 |
|
$ 98.42 | ||||
| 8 | Y704505 | Valve (lt) | 1 |
|
- | ||||
| 9 | 712470 | Manifold, Complete | 1 |
|
- | ||||
| 10 | 704384 | Harness, Wire | 1 |
|
- | ||||
| 11 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 1 |
|
Immediately | $ 215.01 | |||
| 12 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 13 | 704381 | Timer | 1 |
|
- | ||||
| 14 | 704439 | Bracket, Timer | 1 |
|
- | ||||
| 15 | WP488130 | Nut (Replaces: Y701396) | 1 |
|
$ 6.27 | ||||
| 16 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 |
