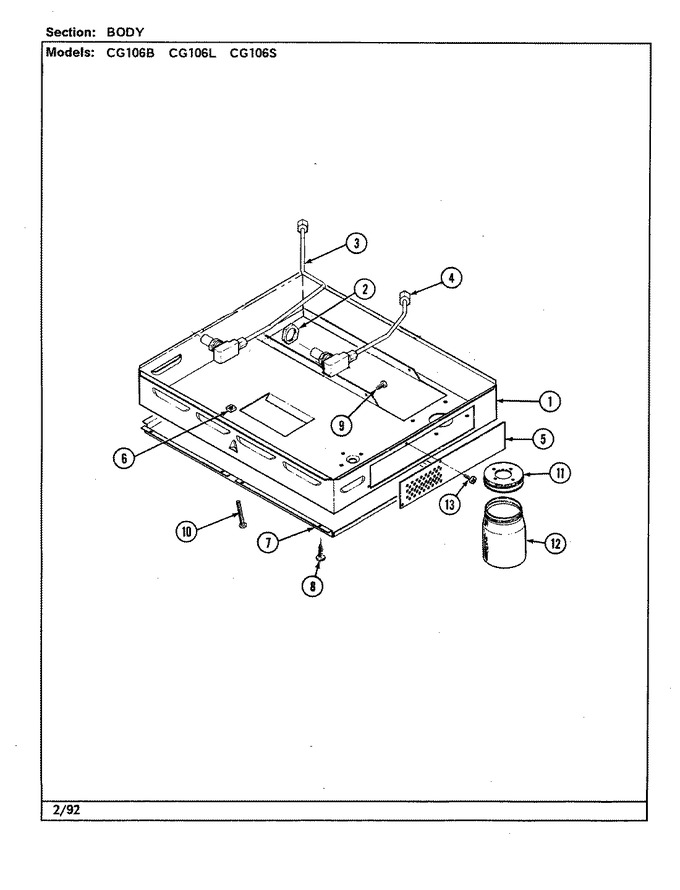

01 - Blower Motor Assembly
02 - Body
03 - Control Panel
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712474 | Box, Burner Assembly | 1 |
|
- | ||||
| 2 | Y704977 | Nut, 5/8`` Hex | 3 |
|
- | ||||
| 2 | Y704588 | Nut, 3/4`` Hex | 1 |
|
- | ||||
| 3 | Y04100206 | Tube (rr) | 6 |
|
- | ||||
| 3 | Y705162 | Tube, Rear | 1 |
|
- | ||||
| 3 | 704701 | Tube, Rear | 1 |
|
- | ||||
| 4 | Y704702 | Tube, Front (lf) | 1 |
|
- | ||||
| 4 | Y04100207 | Tube (lf) | 6 |
|
- | ||||
| 4 | Y705163 | Tube, Front | 3 |
|
- | ||||
| 5 | Y704385 | Cover, Front | 1 |
|
- | ||||
| 5 | WP74003976 | Washer (Replaces: 702592) | 1 |
|
$ 6.47 | ||||
| 6 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 12.06 | ||||
| 7 | 3601F261-51 | Baffle, Bottom (lt) (Replaces: 704527) | 1 |
|
$ 216.98 | ||||
| 8 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 9 | WPW10253196 | Screw (Replaces: Y707113) | 1 |
|
$ 3.76 | ||||
| 10 | Y707121 | Screw | 1 |
|
- | ||||
| 11 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 11 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 12 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 61.43 | ||||
| 13 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 |
