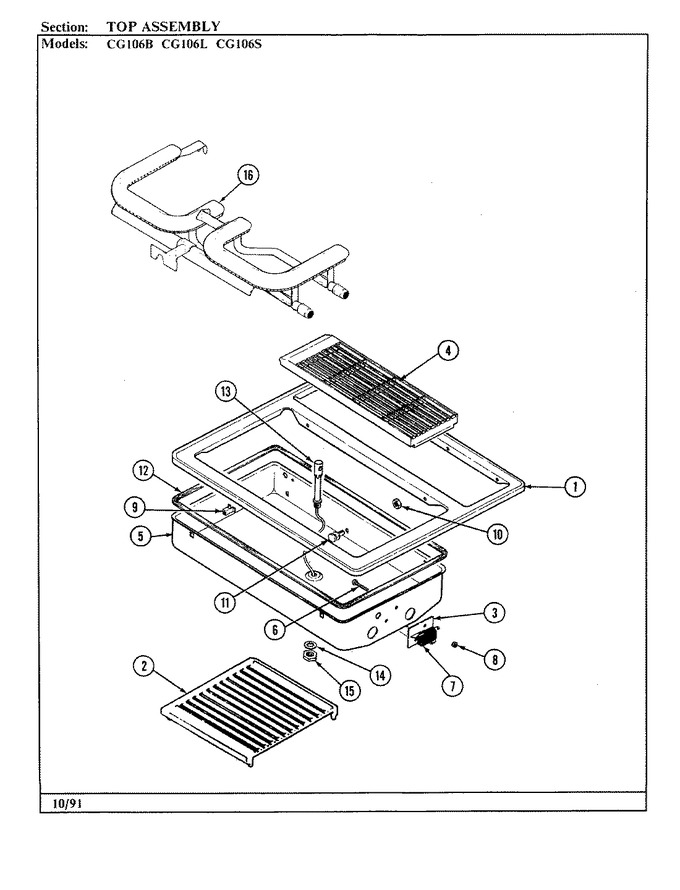

01 - Blower Motor Assembly
02 - Body
03 - Control Panel
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704983 | Top | 1 |
|
- | ||||
| 2 | Y704544 | Grate, Grill | 1 |
|
- | ||||
| 3 | Y704534 | Insulator, Switch | 1 |
|
- | ||||
| 4 | Y704570 | Grill, Air (blk) | 1 |
|
- | ||||
| 5 | Y704924 | Pan, Grill | 1 |
|
- | ||||
| 5 | 704528 | Pan, Grill | 1 |
|
- | ||||
| 6 | DE81-04441A | Screw (Replaces: 702380) | 1 |
|
$ 329.62 | ||||
| 7 | 7403P620-60 | Switch, Micro (Replaces: Y704533) | 1 |
|
$ 141.22 | ||||
| 8 | Y704522 | Nut | 1 |
|
- | ||||
| 8 | 715617 | Washer (teflon) | 1 |
|
- | ||||
| 9 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 10 | Y052721 | Nut (Replaces: Y704553) | 1 |
|
$ 21.38 | ||||
| 11 | 704536 | Pin, Locator | 1 |
|
- | ||||
| 12 | Y704979 | Seal, Pan | 1 |
|
- | ||||
| 13 | WP71002179 | Ignitor, Spark (Replaces: 704535) | 1 |
|
$ 181.49 | ||||
| 14 | 704568 | Lockwasher | 1 |
|
$ 13.02 | ||||
| 15 | Y703856 | Nut, Jam | 1 |
|
$ 5.53 | ||||
| 16 | Y712601 | Burner, Grill | 1 |
|
$ 304.99 | ||||
| 16 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 16 | Y712601 | Burner, Grill (Replaces: Y712301) | 1 |
|
$ 304.99 |
