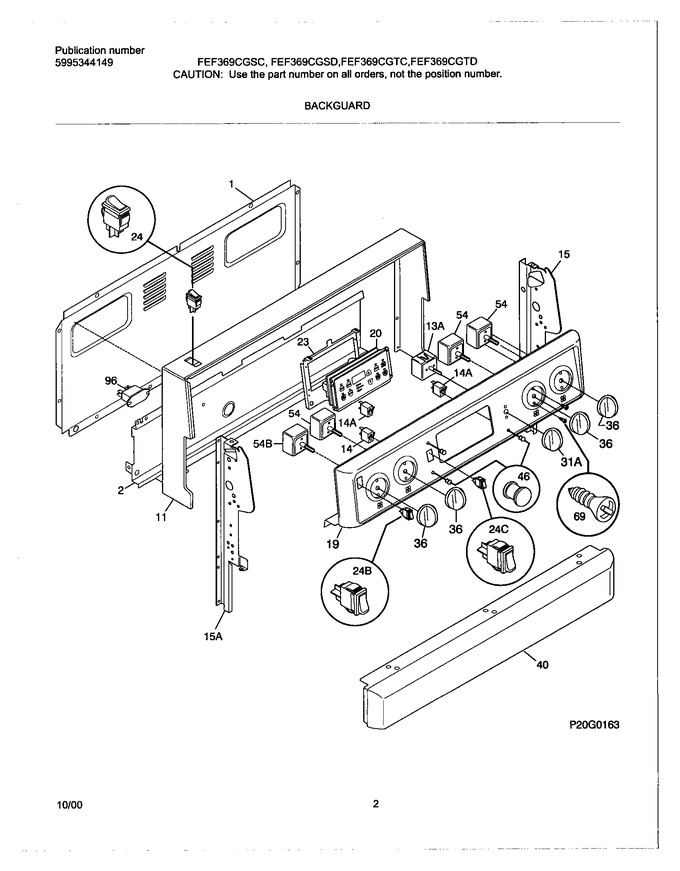

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083720		Trim-wrapper Ele W/hole,almond		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100542		Panel-bkgd, Almond		Appelez-nous	-
20	316131602		Clock/timer,electronic ,20		Appelez-nous	-
20	316101504		Overlay-clock				$ 8.45
23	316100301		Bracket-timer		Appelez-nous	-
36	316025107		Knob-control, Infinite Sw, Almond		Appelez-nous	-
40	316025809		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
13A	5304508926		Switch,infinite ,drawer/zone ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
14A	316022500		Light/lamp, Indicator , Warmer Zone ,125 V			Immediately	$ 53.57
15A	316023109		Support,backguard ,lh		Appelez-nous	-
31A	316095602		Knob-warmer, Almond		Appelez-nous	-
F24	316118102		Switch-oven Light,rocker ,almond		Appelez-nous	-
F24B	316086902		Switch-rocker, Dual Element, Almond		Appelez-nous	-
F24C	316114001		Switch-speed Bake, Almond		Appelez-nous	-
F54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
F54B	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
NI	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
NI	5303292005		Screw (2)		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
