SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Body

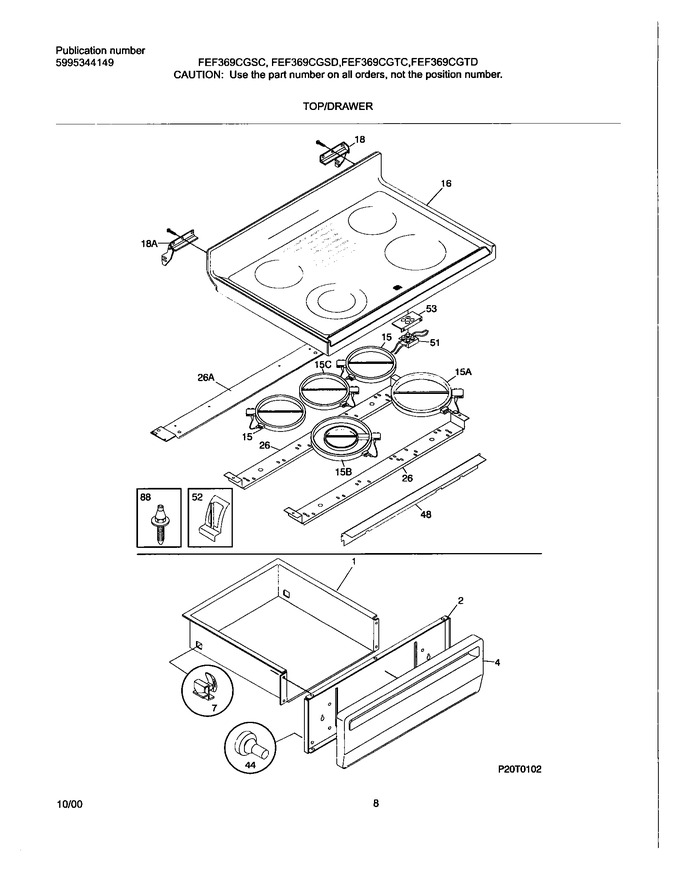

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	5303288582		Shield-drawer,galv Steel ,front Panel		Appelez-nous	-
4	316084406		Panel-drawer Front,almond		Appelez-nous	-
7	3051163		Glide			Immediately	$ 19.41
16	316098140		Maintop & Glass Assy,glass ,almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099100		Channel-support,element ,galv Steel ,(2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099200		Bracket-support,chassis ,galv Steel		Appelez-nous	-
F15	318198834		Element-surface,radiant , Large/8 Inch ,2100 W   (Replaces: 316010206)				$ 205.36
F15A	318198817		Element,6`` ,surface ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15B	389082702		Element-surface,dual ,9`` ,15 ,2100w/1000w   (Replaces: 316049705)				$ 284.39
F15C	316098201		Element-warmer,100 W ,120 V		Appelez-nous	-
F51	316001759		Harness-surface Elements		Appelez-nous	-
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
NI	316112101		Cleaner,cooktop		Appelez-nous	-
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	316045000		Clip-wiring Harness,retainer ,green ,main Top		Appelez-nous	-
NI	316021113		Screw,8-18 X 0.500 ,almond		Appelez-nous	-
NI	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
NI	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28

    View Diagram in Separate Window       Print Part List
