SELECT A DIAGRAM

01 - Blower Motor


02 - Body


03 - Control Assembly


04 - Top Assembly

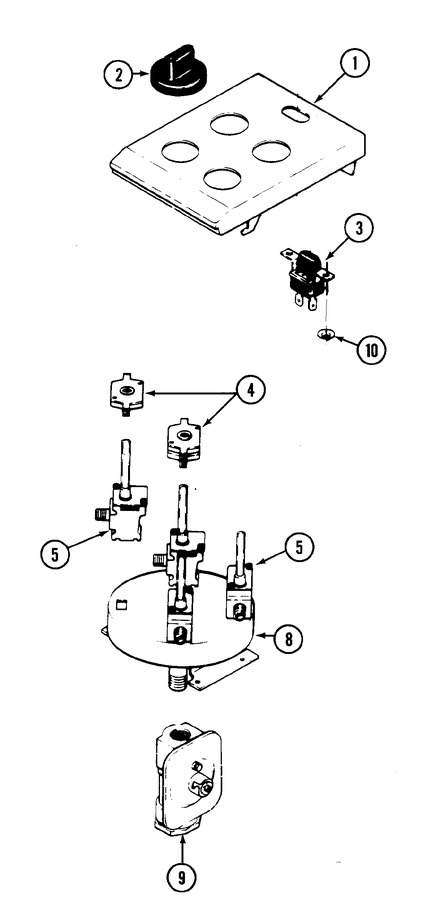

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704503		Escutcheon	1	Appelez-nous	-
1	71001679		Shield, Moisture	1	Appelez-nous	-
2	WP71001641		Knob, Switch   (Replaces: Y705137)	1		Immediately	$ 15.68
2	WP71001641		Knob, Switch (blk)   (Replaces: 705437)	6		Immediately	$ 15.68
4	WPY704512		Switch, Valve (rt)   (Replaces: Y704512)	1			$ 98.02
5	704504		Valve (rt)	1	Appelez-nous	-
5	Y704893		Valve (rt)	6	Appelez-nous	-
5	Y712320		Screw & Washer	5	Appelez-nous	-
8	Y712273		Manifold	1	Appelez-nous	-
9	W11106948		Regulator, Pressure   (Replaces: Y704545)	1		Immediately	$ 215.01
10	Y705023		Palnut	1	Appelez-nous	-
10	7103P166-60		Palnut   (Replaces: 715500)	1			$ 15.91
NI	12001809		Lp Conversion Kit   (Replaces: 71001160)	1			$ 50.27
NI	Y704573		Switch, Fan (blk)	1	Appelez-nous	-
NI	WPY704513		Switch, Valve (lt)   (Replaces: Y704513)	1			$ 98.42
NI	WPY04100188		Valve, Gas (lt)   (Replaces: Y04100188)	2			$ 222.85
NI	Y704505		Valve (lt)	1	Appelez-nous	-
NI	Y712320		Screw & Washer	2	Appelez-nous	-
NI	704894		Valve (lt)	6	Appelez-nous	-
NI	704556		Harness, Wire	1			$ 26.15

    View Diagram in Separate Window       Print Part List
