SELECT A DIAGRAM

01 - Blower Motor


02 - Body


03 - Control Assembly

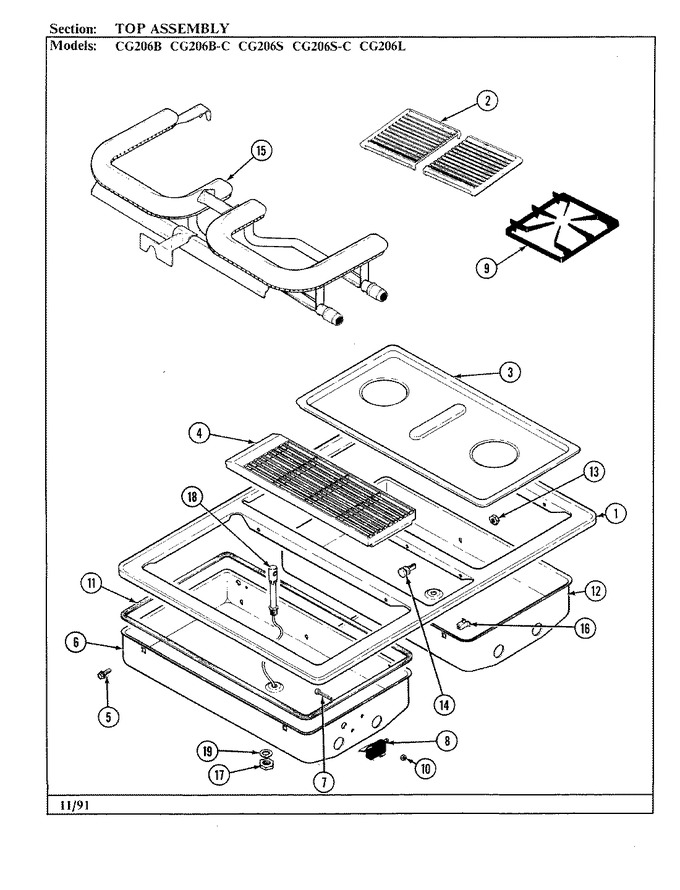

04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712522		Top, Stainless Steel	1	Appelez-nous	-
2	Y704544		Grate, Grill	1	Appelez-nous	-
2	Y04100054		Grate, Grill	7	Appelez-nous	-
3	Y712274		Pan, Aeration (blk)	1	Appelez-nous	-
4	Y704570		Grill, Air (blk)	1	Appelez-nous	-
5	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
6	Y704924		Pan, Grill	3	Appelez-nous	-
6	704528		Pan, Grill	1	Appelez-nous	-
7	DE81-04441A		Screw   (Replaces: 702380)	1			$ 329.62
8	7403P620-60		Switch, Micro   (Replaces: Y704533)	1			$ 141.22
8	715617		Washer (teflon)	1	Appelez-nous	-
9	Y705021		Grate, Surface	2	Appelez-nous	-
9	Y704543		Grate, Surface	1	Appelez-nous	-
9	Y705483		Grate, Surface	5	Appelez-nous	-
10	Y704534		Insulator, Switch	1	Appelez-nous	-
10	Y704522		Nut	1	Appelez-nous	-
11	Y704979		Seal, Pan	1	Appelez-nous	-
12	Y04100517		Pan, Grill	1	Appelez-nous	-
13	Y052721		Nut   (Replaces: Y704553)	1			$ 21.38
14	704536		Pin, Locator	1	Appelez-nous	-
15	Y712601		Burner, Grill   (Replaces: Y712301)	1			$ 304.99
15	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
15	Y712601		Burner, Grill	2			$ 304.99
16	Y700503		Clip, Retainer	1	Appelez-nous	-
17	Y703856		Nut, Jam	1			$ 5.53
18	WP71002179		Ignitor, Spark   (Replaces: 704535)	1			$ 181.49
19	704568		Lockwasher	1			$ 13.02

    View Diagram in Separate Window       Print Part List
