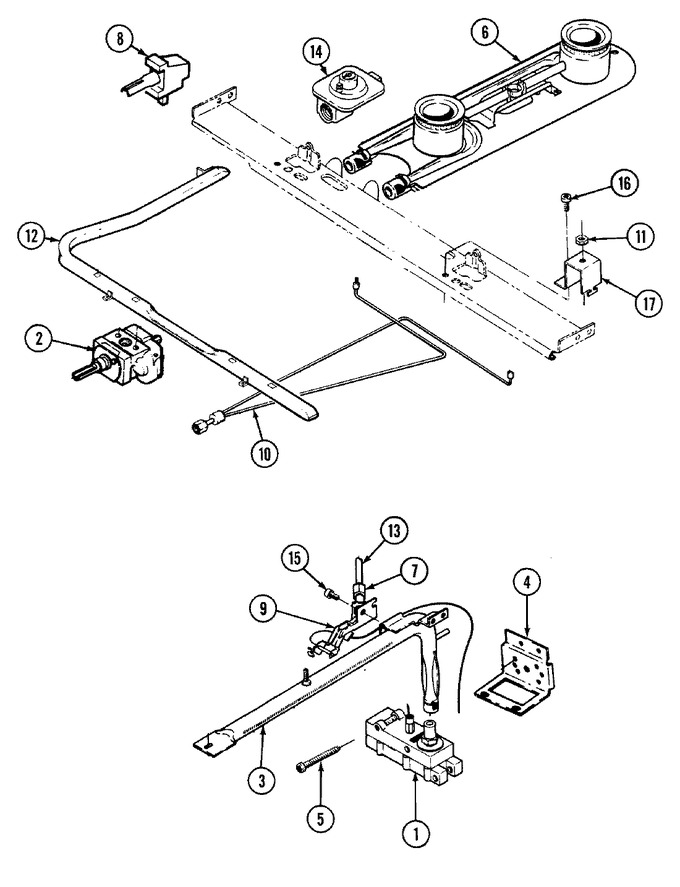

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7501P111-60 | Valve, Oven | 12 |
|
- | ||||
| 1 | 1555251 | Nut, Loxit (3/8``) | 12 |
|
- | ||||
| 1 | 3414F094-44 | Tubing 3/8`` | 12 |
|
- | ||||
| 2 | 7101P010-60 | Screw, Control | 12 |
|
- | ||||
| 2 | 1555279 | Nut, 1/4`` Loxit | 12 |
|
- | ||||
| 2 | 7515P032-60 | Thermostat | 12 |
|
- | ||||
| 3 | 3403D023-45 | Burner, Oven | 12 |
|
- | ||||
| 4 | 3801F328-45 | Support, Safety Valve | 12 |
|
- | ||||
| 5 | WP7101P062-60 | Screw No.10 X 2 (Replaces: 7101P062-60) | 12 |
|
$ 7.24 | ||||
| 6 | 3412A004-19 | Burner, Top | 12 |
|
- | ||||
| 7 | 1555261K | Nut & Ferrule (3/16``) | 12 |
|
- | ||||
| 8 | 7502P174-60 | Valve, Top Burner | 12 |
|
- | ||||
| 8 | 7101P044-60 | Screw, Valve | 12 |
|
- | ||||
| 9 | 7432P068-60 | Lighter Pilot | 12 |
|
- | ||||
| 10 | 7505P193-60 | Burner, Pilot (natural) | 12 |
|
- | ||||
| 11 | 7103P070-60 | Nut, Top Pilot | 12 |
|
- | ||||
| 12 | 7513P132-60 | Pipe Manifold | 12 |
|
- | ||||
| 13 | 3414F108-44 | Tubing 3/16`` Sub | 12 |
|
- | ||||
| 14 | 7510P002-60 | Regulator, Pressure | 12 |
|
- | ||||
| 15 | WP4159193 | Screw (Replaces: 7101P112-60) | 12 |
|
$ 4.29 | ||||
| 16 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 12 |
|
Immediately | $ 12.62 | |||
| 17 | 3807F024-34 | Support | 12 |
|
- |
