SELECT A DIAGRAM

01 - Body


02 - Control System


03 - Door/drawer


04 - Top & Control Panel

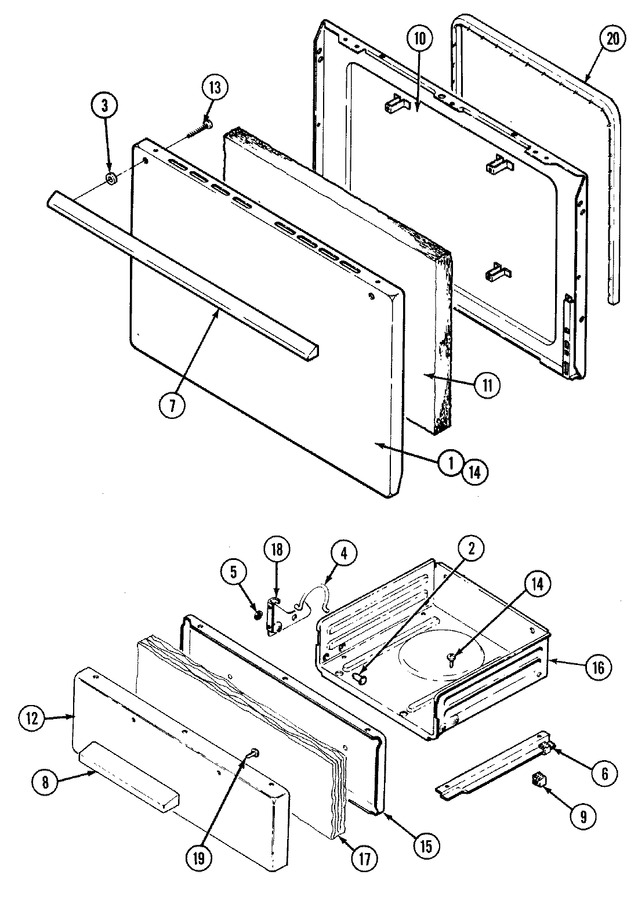

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F096-71		Panel, Door (wht)		Appelez-nous	-
1	W11233072		Screw   (Replaces: 7101P290-60)			Immediately	$ 12.62
2	7113P012-60		Pin, Broiler Hinge		Appelez-nous	-
3	8010P084-60		Spacer, Handle (blk)		Appelez-nous	-
4	7803P065-60		Spring, Hinge (rt)		Appelez-nous	-
4	7803P064-60		Spring, Hinge (lt)		Appelez-nous	-
5	7103P022-60		Nut, Grip		Appelez-nous	-
6	3404F022-51		Track, Drawer (lt)		Appelez-nous	-
6	3404F023-51		Track, Drawer (rt)		Appelez-nous	-
6	W11233072		Screw   (Replaces: 7101P290-60)			Immediately	$ 12.62
7	7701P030-60		Handle, Door (chr)		Appelez-nous	-
8	7701P012-60		Handle, Drawer (chr)		Appelez-nous	-
9	8016P011-60		Glide, Drawer		Appelez-nous	-
9	8016P013-60		Glide		Appelez-nous	-
10	2402W201-19		Lining, Door		Appelez-nous	-
11	3601F235-80		Baffle, Oven Door		Appelez-nous	-
11	4804F033-60		Insulation, Door		Appelez-nous	-
12	2403F028-71		Panel, Drawer (wht)		Appelez-nous	-
13	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)			Immediately	$ 7.69
14	W11233072		Screw   (Replaces: 7101P290-60)			Immediately	$ 12.62
15	2404F035-19		Lining, Broiler Drawer		Appelez-nous	-
16	3407F012-19		Drawer, Broiler		Appelez-nous	-
17	4804F025-60		Insulation		Appelez-nous	-
18	3418F079-51		Hinge, Drawer (lt)		Appelez-nous	-
18	3418F080-51		Hinge, Drawer (rt)		Appelez-nous	-
19	74002481		Screw, Handle   (Replaces: 7101P283-60)				$ 5.82
20	WP7212P043-60		Seal, Door   (Replaces: 7212P042-60)			Immediately	$ 56.83

    View Diagram in Separate Window       Print Part List
