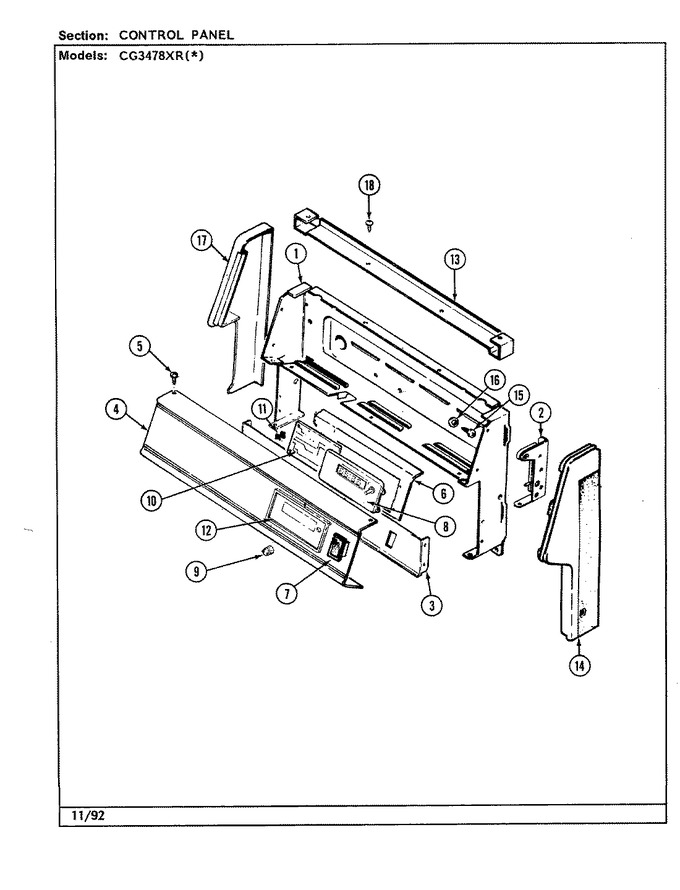

02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4001F088-51		Housing, Backguard	01	Appelez-nous	-
2	3807F423-51		Support, Housing (rt)	01	Appelez-nous	-
2	3807F424-51		Support, Housing (lt)	01	Appelez-nous	-
3	3604F188-09		Shield, Flue	01	Appelez-nous	-
4	4851S007-59		Panel, Control Assy	09	Appelez-nous	-
4	4851S001-59		Panel, Control Assy	01	Appelez-nous	-
5	WPY706189		Screw   (Replaces: 7118P019-60)	01		Immediately	$ 6.47
6	3801F310-45		Bracket, Clock	09	Appelez-nous	-
6	3801F263-45		Bracket, Clock	01	Appelez-nous	-
7	7403P067-60		Switch, Rocker (blk)	01			$ 91.35
8	7601P169-60		Clock	01	Appelez-nous	-
8	7601P208-60CP		Clock   (Replaces: 7601P208-60)	09	Appelez-nous	-
9	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P431-60)	01			$ 12.13
10	7428P012-60		Relay	01	Appelez-nous	-
11	8004P020-60		Support, Relay Board	01	Appelez-nous	-
12	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
13	4001F064-51		Extension, Control Panel	01	Appelez-nous	-
14	7726P060-60		End Cap (rt-blk)	01	Appelez-nous	-
15	W11233072		Screw   (Replaces: 7118P018-60)	01		Immediately	$ 12.62
16	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	01			$ 7.68
17	7726P059-60		End Cap (lt-blk)	01	Appelez-nous	-
18	W11233072		Screw, Housing   (Replaces: 7118P015-60)	01		Immediately	$ 12.62
NI	5170P124-60		Harness Ctrl To Relay	01	Appelez-nous	-
NI	8113P046-60		Manual, Use & Care	01	Appelez-nous	-
NI	5180D142-60		Harness, Wire Clock	01	Appelez-nous	-
NI	5125A320-60		Wires, Loose	01	Appelez-nous	-
NI	5125A354-60		Wires, Loose	09	Appelez-nous	-
NI	5170P123-60		Harness Sensor	01	Appelez-nous	-
NI	5170P160-60		Harness, Sensor & Lock	09	Appelez-nous	-
NI	5180D152-60		Harness, Control Panel	09	Appelez-nous	-
