SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer

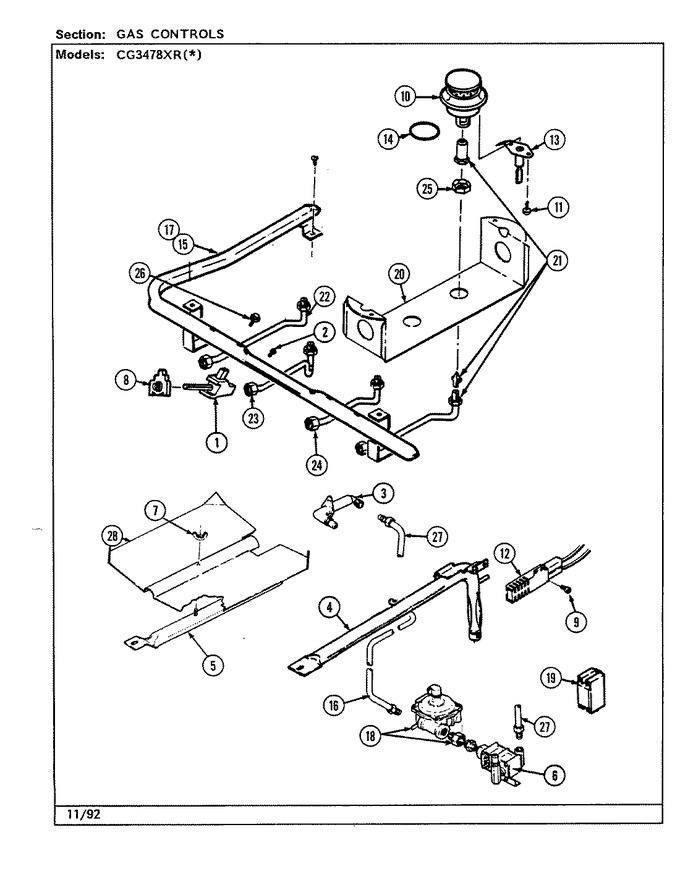

04 - Gas Controls
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P217-60 | Valve, Top Burner | 1 |
|
- | ||||
| 2 | 7101P044-60 | Screw, Valve | 1 |
|
- | ||||
| 3 | 7507P088-60 | Fitting, Broil Burner | 1 |
|
- | ||||
| 3 | 3605F186-45 | Plate, Fitting | 1 |
|
- | ||||
| 4 | 3403D043-45 | Burner, Bake | 1 |
|
- | ||||
| 5 | 3807F446-45 | Support, Burner | 1 |
|
- | ||||
| 5 | 3403D024-45 | Burner, Broil | 1 |
|
- | ||||
| 6 | WP74006427 | Valve, Oven (Replaces: 7501P097-60) | 1 |
|
$ 313.44 | ||||
| 7 | 4005F429-51 | Cover, Valve | 1 |
|
- | ||||
| 7 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 8 | WP7403P279-60 | Switch, Igniter (Replaces: 7403P279-60) | 1 |
|
$ 91.89 | ||||
| 9 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 1 |
|
$ 4.29 | ||||
| 10 | WP3412D024-09 | Sealed Burner Assy. (Replaces: 3412D017-09) | 1 |
|
Immediately | $ 92.69 | |||
| 11 | WP59002061 | Screw (Replaces: 7101P315-60) | 1 |
|
$ 6.98 | ||||
| 12 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 1 |
|
Immediately | $ 60.44 | |||
| 12 | 4005F421-45 | Cover,igniter | 1 |
|
- | ||||
| 13 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.10) | 1 |
|
- | ||||
| 14 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 1 |
|
Immediately | $ 92.69 | |||
| 15 | 7513P120-60 | Pipe, Manifold | 1 |
|
- | ||||
| 16 | 3414F103-44 | Tubing, Regulator/pipe (3/8``) | 1 |
|
- | ||||
| 17 | 7103P130-60 | Nut, Loxit (3/8``) | 1 |
|
$ 8.20 | ||||
| 18 | WP74006429 | Regulator, Pressure W/fitting (Replaces: 7510P050-60) | 1 |
|
$ 282.77 | ||||
| 19 | 12001596 | Module, Spark (Replaces: 7431P021-60) | 1 |
|
Immediately | $ 85.93 | |||
| 19 | 3807F421-51 | Support, Spark Module | 1 |
|
- | ||||
| 20 | 3807F444-45 | Support, Top Burner | 1 |
|
- | ||||
| 21 | 7507P085-60 | Fitting, Orifice (r.r.) | 1 |
|
- | ||||
| 22 | 7507P113-60 | Fitting, Orifice (l.r.) | 1 |
|
- | ||||
| 23 | 7507P084-60 | Fitting, Orifice (l.f. 9,200) | 1 |
|
- | ||||
| 24 | 7507P091-60 | Fitting, Orifice (r.f.) | 1 |
|
- | ||||
| 25 | 7103P119-60 | Palnut | 1 |
|
- | ||||
| 26 | 7101P296-60 | Screw | 1 |
|
- | ||||
| 27 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 1 |
|
- | ||||
| 28 | 5140D035-60 | Wires, Igniter | 1 |
|
- | ||||
| 28 | 3601F217-45 | Baffle, Broil | 1 |
|
- | ||||
| 28 | 5125A312-60 | Harness, Loose/burner Box | 1 |
|
- |
