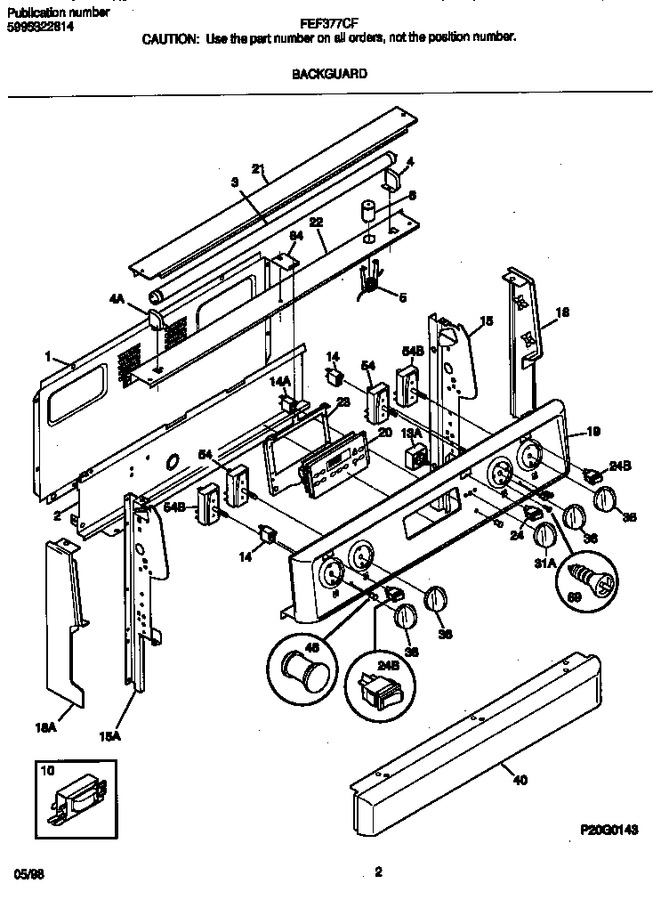

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
4	3051223		Receptacle-lamp, Lh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	316099800		Ballast-lamp		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14	316022504		Light-indicator,250v		Appelez-nous	-
14	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
15	316049104		Support-backguard, Rh		Appelez-nous	-
15	316049105		Support-backguard, Lh		Appelez-nous	-
18	316026904		End Cap, White, Rh				$ 127.68
18	316026905		End Cap, White, Lh				$ 107.15
19	316024541		Panel-control, Metal, White		Appelez-nous	-
20	5303935107		Clock/timer, Eoc, White, With Overlay		Appelez-nous	-
21	316024902		Trim-canopy/shield, White		Appelez-nous	-
22	316059901		Support-receptacle		Appelez-nous	-
23	316060002		Bracket-clock Mtg		Appelez-nous	-
24	316083100		Switch-rocker, Dual Element, White   (Replaces: 316086901)				$ 89.31
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
31	316095601		Knob-warmer, White				$ 23.78
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
40	316025808		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
64	316062400		Retainer Plate		Appelez-nous	-
*11240	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*11241	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*11242	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*11244	316085600		Insulator-shield Thermostt		Appelez-nous	-
*11245	316112500		Template, Anti-tip Bracket				$ 3.55
*11246	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*11247	316089306		Overlay-clock				$ 106.63
