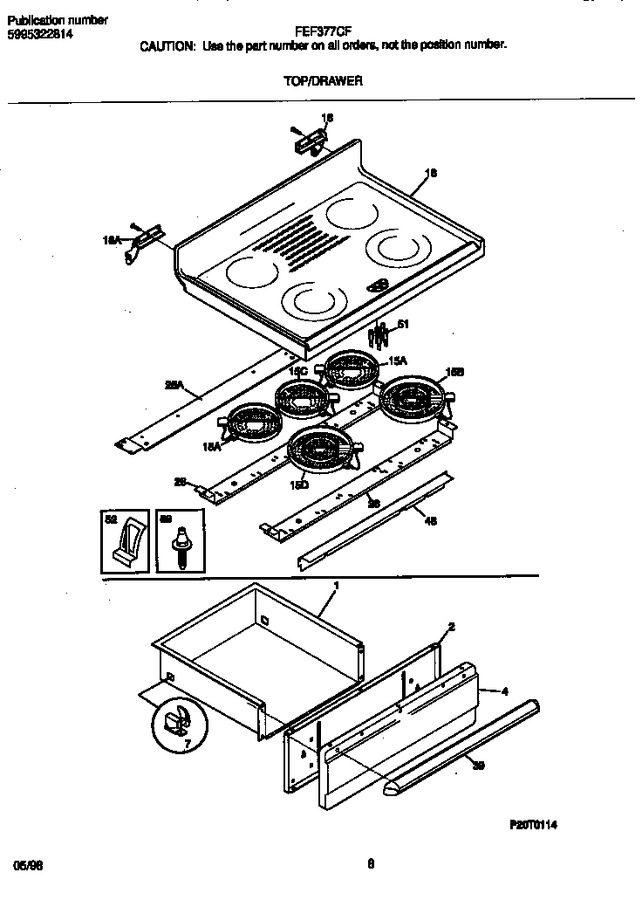

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056201		Panel-drawer,white		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	389082702		Element-surface, Radiant, Dual, 2100w/1000w, Limit Sw Incl   (Replaces: 316049703)				$ 284.39
15	316098200		Element-warmer, 120v/100w		Appelez-nous	-
15	318198817		Element-surface, Radiant, Small/6 Inch ,1200w,limit Sw I   (Replaces: 316010203)			Immediately	$ 192.78
15	316049702		Element-surface, Radiant, 9``, Dual, 2100w/700w, Limit Sw		Appelez-nous	-
16	316098120		Main Top, Glass, White		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
39	316026106		Handle-drawer,white		Appelez-nous	-
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	316105200		Light-indicator, Hot Surface, Assy, (1)		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
88	316099500		Pin,guide ,(2)				$ 6.53
*11255	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*11256	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*11257	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*11259	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*11260	316112101		Cleaner,cooktop		Appelez-nous	-
*11261	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*11262	316001745		Harness-top Elements		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
