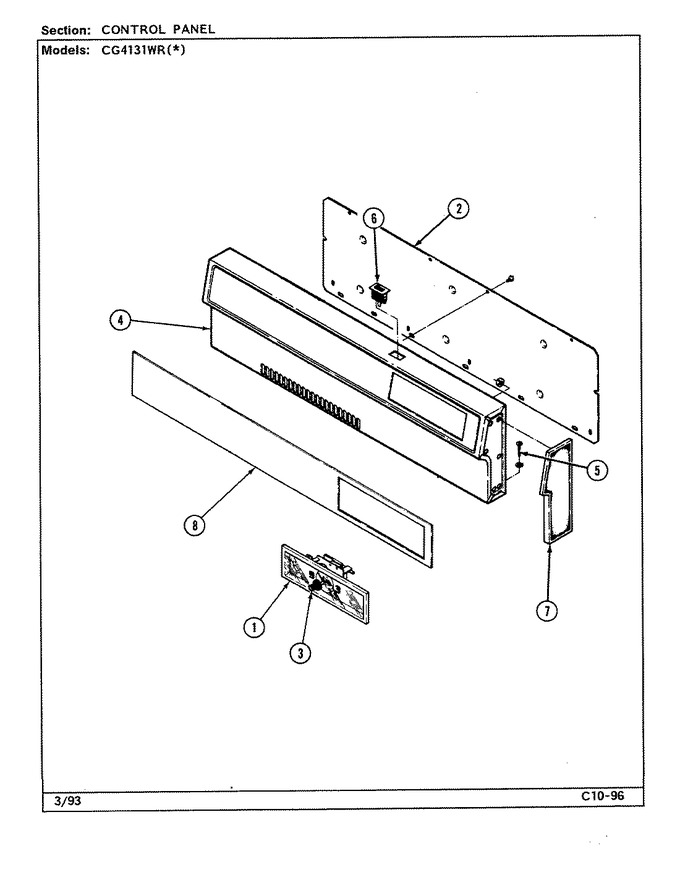

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P100-60 | Clock | 01 |
|
- | ||||
| 2 | 4005F036-80 | Shield | 01 |
|
- | ||||
| 3 | 7711P126-60 | Knob, Clock | 01 |
|
- | ||||
| 4 | 3802F014-80 | Brace | 01 |
|
- | ||||
| 4 | 2601W346-81 | Backguard | 01 |
|
- | ||||
| 5 | 7101P069-60 | Screw | 01 |
|
- | ||||
| 6 | 7403P242-60 | Switch, Light | 01 |
|
- | ||||
| 7 | 7726P014-60 | Trim | 01 |
|
- | ||||
| 7 | 7726P003-60 | Trim | 01 |
|
- | ||||
| 7 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 8 | 7719P060-60 | Nameplate | 01 |
|
- | ||||
| 8 | 7703P164-60 | Trim, Backguard | 01 |
|
- | ||||
| NI | 5180D136-60 | Upper Harness | 01 |
|
- |
