01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

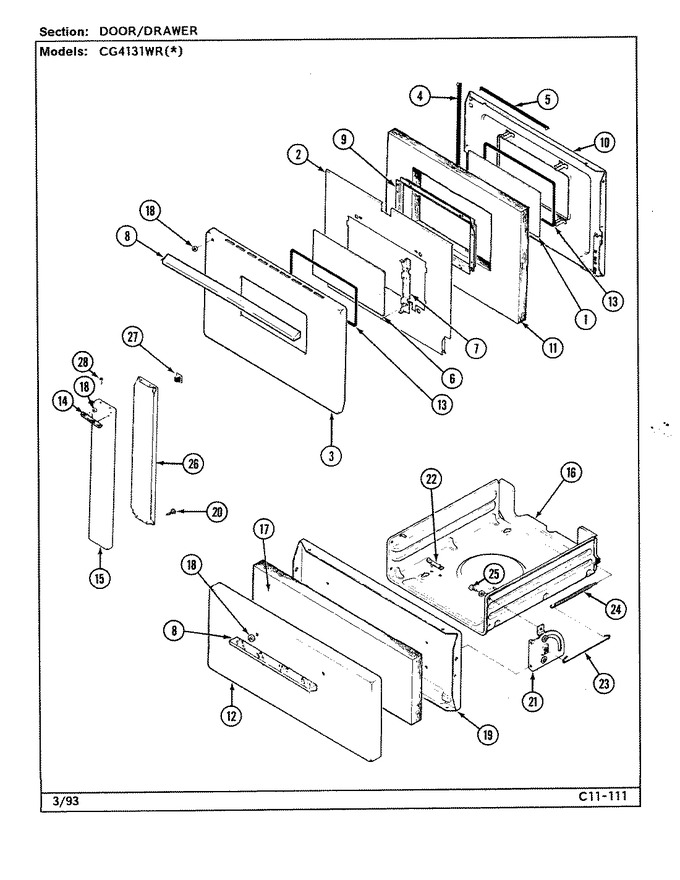

| 1 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 2 | 3601F094-51 | Baffle, Oven Door | 01 |
|
- | ||||
| 3 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 3 | 2401F100-71 | Panel, Ov Dr | 01 |
|
- | ||||
| 4 | 7212P003-60 | Seal, Oven Door | 01 |
|
$ 46.94 | ||||
| 5 | 7212P025-60 | Seal, Oven Door | 01 |
|
- | ||||
| 5 | 7112P064-60 | Clip, Seal | 01 |
|
- | ||||
| 6 | 7902P051-60 | Glass | 01 |
|
- | ||||
| 7 | 3804F095-80 | Retainer, Glass | 01 |
|
- | ||||
| 8 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 01 |
|
$ 5.82 | ||||
| 8 | 7701P012-60 | Handle, Drawer (chr) | 01 |
|
- | ||||
| 8 | 7701P030-60 | Handle, Door (chr) | 01 |
|
- | ||||
| 9 | 3603F013-80 | Frame, Window----na | 01 |
|
- | ||||
| 10 | 2402W165-19 | Lining, Oven Door | 01 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 11 | 4804F021-60 | Insulation, Door | 01 |
|
- | ||||
| 12 | 2403F029-71 | Panel, Drawer (wht) | 01 |
|
- | ||||
| 13 | 7201P017-60 | Gasket, Window | 01 |
|
$ 52.69 | ||||
| 14 | 7701P009-60 | Handle, Compartment Door | 01 |
|
- | ||||
| 15 | 2409F010-71 | Panel | 01 |
|
- | ||||
| 16 | 3407W004-11 | Drawer Assy. | 01 |
|
- | ||||
| 17 | 7002P002-60 | Insulation | 01 |
|
- | ||||
| 18 | 8010P002-60 | Spacer, Handle | 01 |
|
- | ||||
| 19 | 2404F028-19 | Lining Door Broiler | 01 |
|
- | ||||
| 19 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 20 | 8003P003-60 | Bumper | 01 |
|
- | ||||
| 21 | 3418A062-34 | Hinge, Broiler (rt) | 01 |
|
- | ||||
| 21 | 3418A063-34 | Hinge, Broiler (lt) | 01 |
|
- | ||||
| 22 | 8002P001-60 | Catch | 01 |
|
- | ||||
| 23 | 7807P001-60 | Link, Broiler | 01 |
|
- | ||||
| 24 | 7803P014-60 | Spring | 01 |
|
- | ||||
| 25 | 7101P114-60 | Screw | 01 |
|
- | ||||
| 25 | 7103P067-60 | Lock Nut, Catch | 01 |
|
- | ||||
| 26 | 2408F006-80 | Lining | 01 |
|
- | ||||
| 27 | 8002P013-60 | Catch, Female | 01 |
|
- | ||||
| 28 | 7101P013-60 | Screw, Special | 01 |
|
- |
