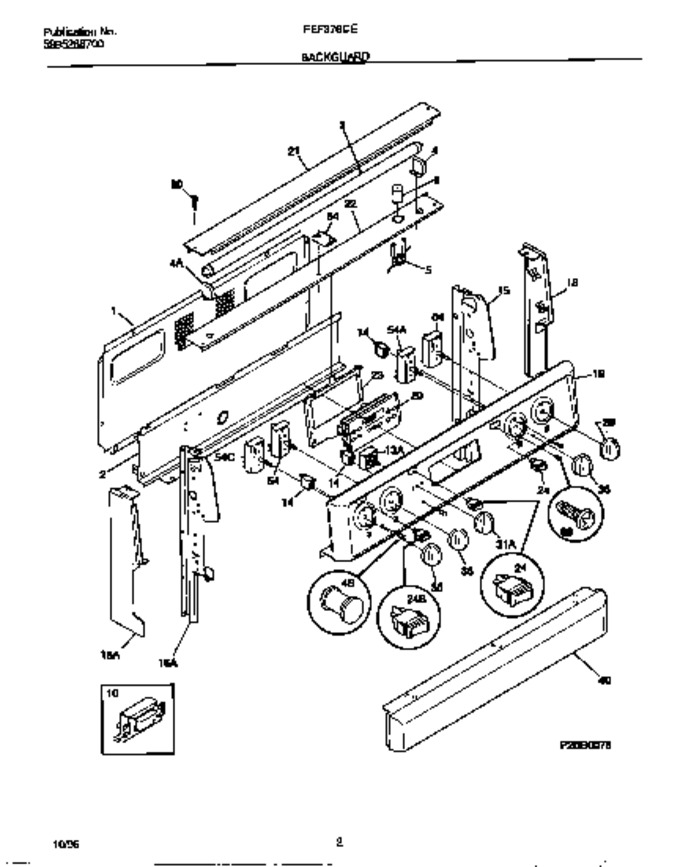

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316081601 | Shield-backguard, Rear Wall |
|
- | |||||
| 2 | 316015905 | Shield-backguard, Inner |
|
- | |||||
| 3 | 3131275 | Lamp-fluorescent, Backguard |
|
$ 49.40 | |||||
| 4 | 3051222 | Receptacle-lamp, Rh |
|
- | |||||
| 4 | 3051223 | Receptacle-lamp, Lh |
|
- | |||||
| 5 | 316053200 | Receptacle, Starter |
|
- | |||||
| 6 | 3206218 | Starter-lamp |
|
$ 54.08 | |||||
| 10 | 5303051115 | Ballast-lamp |
|
- | |||||
| 13 | 5304508926 | Switch-warmer, Infinite (Replaces: 316095500) |
|
Immediately | $ 84.18 | ||||
| 14 | 316034802 | Light-indicator, Hot Surface |
|
- | |||||
| 15 | 316049106 | Support, Backguard, Rh |
|
- | |||||
| 15 | 316049107 | Support, Backguard, Lh |
|
- | |||||
| 18 | 316026901 | End Cap, Black, Lh |
|
- | |||||
| 18 | 316026900 | End Cap, Black, Rh |
|
$ 53.24 | |||||
| 19 | 316024531 | Panel-control, Black |
|
- | |||||
| 20 | 316027419 | Clock/timer, Eoc |
|
- | |||||
| 21 | 316024900 | Trim, Canopy/shield, Black |
|
- | |||||
| 22 | 316059901 | Support-receptacle |
|
- | |||||
| 23 | 316060003 | Bracket, Clock Mtg |
|
- | |||||
| 24 | 5304527841 | Switch-rocker, Gray, Oven Light (Replaces: 316005612) |
|
Immediately | $ 11.38 | ||||
| 24 | 316076300 | Switch-rocker, Grey, Dual Element |
|
- | |||||
| 31 | 316095600 | Knob-warmer, Black |
|
- | |||||
| 36 | 316025105 | Knob-control, Infinite Sw, Grey |
|
- | |||||
| 40 | 316025800 | Panel-manifold |
|
- | |||||
| 54 | 316436001 | Switch-8`` Element (Replaces: 316021501) |
|
Immediately | $ 51.68 | ||||
| 54 | 5303935086 | Switch-6`` Element (Replaces: 316021500) |
|
Immediately | $ 51.95 | ||||
| 54 | 5304528972 | Switch-6/8 (Replaces: 316049800) |
|
$ 47.78 | |||||
| 60 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| 64 | 316062400 | Retainer, Plate, 64 |
|
- | |||||
| 69 | 5303292005 | Screw-switch Mtg, 8-32 X 5/32, (6) |
|
- | |||||
| *25840 | 316519700 | Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *25841 | 5303288574 | Screw, Truss Head, 8-10 X 0.375 |
|
- | |||||
| 14A | 316022500 | Light/lamp, Indicator, Red,250 V,(2) |
|
Immediately | $ 53.57 | ||||
| 14B | 316022503 | Light-lamp, Indicator, 250 V |
|
Immediately | $ 70.16 | ||||
| 46A | 316035700 | Lens-light/lamp, Indicator |
|
- | |||||
| 46B | 316040201 | Lens-light/lamp, Indicator, Red |
|
- |
