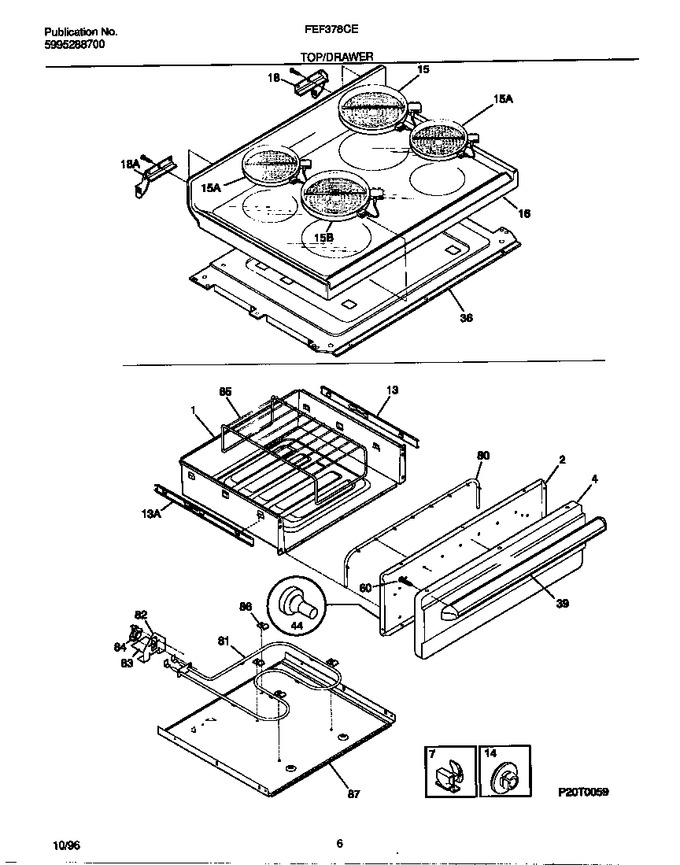

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056207		Panel-drawer, Black		Appelez-nous	-
13	316096501		Channel-drawer, Lh		Appelez-nous	-
13	316096500		Channel-drawer, Rh		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
15	316049701		Element-surface, Dual Coil, 8 Inch, 2100w/700w		Appelez-nous	-
15	318198817		Element-surface, 1200 W, Small/6 Inch   (Replaces: 316010203)			Immediately	$ 192.78
15	318198834		Element-surface, 2100 W, Large/8 Inch   (Replaces: 316010204)				$ 205.36
16	316035530		Main Top Assy, Glass/steel, Enamel, Black		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
80	316093000		Seal-door, Warmer Drawer		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091902		Base-warmer		Appelez-nous	-
*25846	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*25847	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*25848	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*25849	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*25850	5309951550		Cleaner-cooktop		Appelez-nous	-
18A	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18B	3203618		Rivet-pop, Warning-plate (not Illustrated)		Appelez-nous	-
36A	316033610		Panel-element Mtg, Glass Top		Appelez-nous	-
36B	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36C	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
