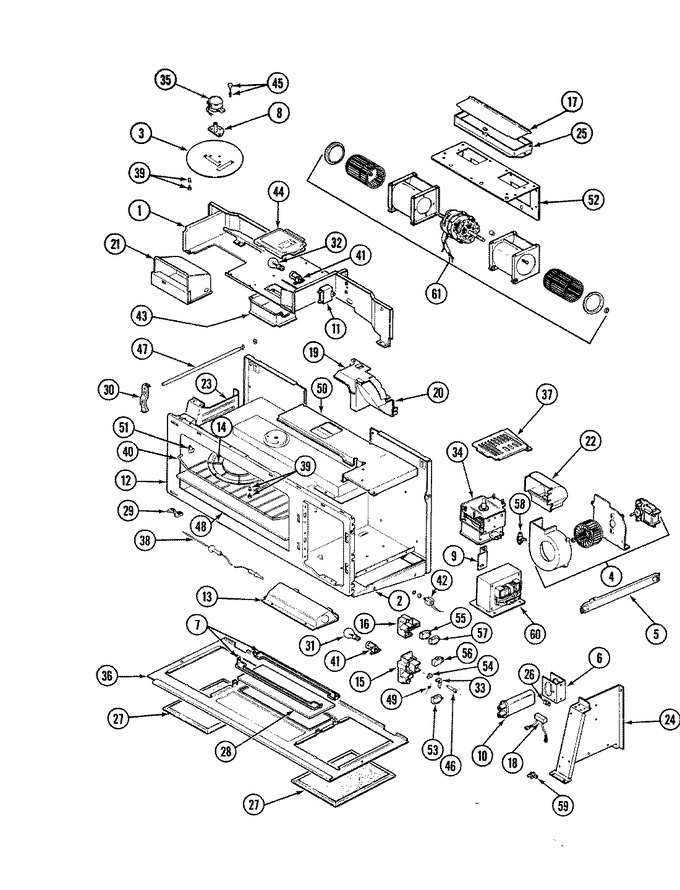

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2045-0004 | Baffle, Upper | 1 |
|
- | ||||
| 2 | 2085-0003 | Base | 1 |
|
- | ||||
| 3 | 2110-0004 | Blade, Stirrer | 1 |
|
- | ||||
| 4 | 2720-0010 | Motor, Blower | 1 |
|
- | ||||
| 5 | 2145-0048 | Bracket | 1 |
|
- | ||||
| 6 | 2145-0046 | Bracket, Capacitor | 1 |
|
- | ||||
| 7 | 2145-0047 | Bracket, Glass | 1 |
|
- | ||||
| 8 | 2145-0049 | Mounting, Stirrer | 1 |
|
- | ||||
| 9 | 2145-0050 | Barrier, H.v. Transformer | 1 |
|
- | ||||
| 10 | 2210-0004 | Capacitor | 1 |
|
- | ||||
| 11 | 2720-0009 | Mtr Capacitor | 1 |
|
- | ||||
| 12 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 13 | 2275-0027 | Cover, Light | 1 |
|
- | ||||
| 14 | 2275-0026 | Cover, Stirrer | 1 |
|
- | ||||
| 15 | 2275-0030 | Cover, Switch | 1 |
|
- | ||||
| 16 | 2275-0029 | Cover, Switch Upper | 1 |
|
- | ||||
| 17 | 2305-0002 | Door, Damper | 1 |
|
- | ||||
| 18 | WP13091701 | Diode (Replaces: 2315-0004) | 1 |
|
$ 31.71 | ||||
| 19 | 2335-0016 | Duct | 1 |
|
- | ||||
| 20 | 2335-0017 | Duct | 1 |
|
- | ||||
| 21 | 2335-0015 | Duct, Air | 1 |
|
- | ||||
| 22 | 2335-0018 | Air Guide Side | 1 |
|
- | ||||
| 23 | 3130-0020 | Duct, Side Left | 1 |
|
- | ||||
| 24 | 3130-0021 | Duct, Side (rt) | 1 |
|
- | ||||
| 25 | 2360-0003 | Damper, Hood Assembly | 1 |
|
- | ||||
| 26 | 2385-0004 | Fastener | 1 |
|
- | ||||
| 27 | 2390-0003 | Filter, Air | 1 |
|
- | ||||
| 27 | 2390-0004 | Filter(non-vent) | 1 |
|
- | ||||
| 28 | 2455-0011 | Glass, Lamp | 1 |
|
- | ||||
| 29 | 2520-0012 | Clip, Bottom | 1 |
|
- | ||||
| 30 | 2520-0011 | Guide, Mtg Shaft | 1 |
|
- | ||||
| 30 | 2610-0003 | Installation Kit | 1 |
|
- | ||||
| 31 | 8206232A | Lamp (Replaces: 2635-0005) | 1 |
|
Immediately | $ 6.61 | |||
| 32 | 8206232A | Lamp, Oven 30 W (Replaces: 2635-0004) | 1 |
|
Immediately | $ 6.61 | |||
| 33 | 2660-0017 | Lever, Hook | 1 |
|
- | ||||
| 34 | 2705-0004 | Magnetron | 1 |
|
- | ||||
| 35 | 2735-0025 | Mounting Nut | 1 |
|
- | ||||
| 35 | 2720-0011 | Motor, Stirrer | 1 |
|
- | ||||
| 36 | 2800-0014 | Panel, Access | 1 |
|
- | ||||
| 37 | 2850-0004 | Plug, Mounting Plate | 1 |
|
- | ||||
| 38 | 2860-0002 | Probe | 1 |
|
- | ||||
| 39 | 2950-0006 | Rivet, Push | 1 |
|
- | ||||
| 40 | 2905-0006 | Rack | 1 |
|
- | ||||
| 41 | 2915-0007 | Receptacle, Lamp | 1 |
|
- | ||||
| 42 | 2915-0006 | Receptacle, Probe | 1 |
|
- | ||||
| 43 | 2920-0002 | Reflector | 1 |
|
- | ||||
| 44 | 2920-0003 | Reflector, Lamp | 1 |
|
- | ||||
| 45 | 2950-0005 | Push Rivet | 1 |
|
- | ||||
| 46 | 3005-0114 | Screw, Cam | 1 |
|
- | ||||
| 47 | 3020-0005 | Shaft Assembly | 1 |
|
- | ||||
| 48 | 3025-0003 | Shelf, W/gasket | 1 |
|
- | ||||
| 49 | 3070-0024 | Spring, Hook | 1 |
|
- | ||||
| 50 | 3130-0017 | Support, Motor | 1 |
|
- | ||||
| 51 | 3130-0018 | Rack, Support | 1 |
|
- | ||||
| 52 | 3130-0019 | Bracket, Motor | 1 |
|
- | ||||
| 53 | 3135-0063 | Switch | 1 |
|
- | ||||
| 54 | 2195-0007 | Cam, Switch | 1 |
|
- | ||||
| 55 | 3135-0060 | Switch, Logic | 1 |
|
- | ||||
| 56 | 56001100 | Switch, Monitor (Replaces: 3135-0059) | 1 |
|
$ 10.64 | ||||
| 57 | 3135-0061 | Switch, Primary | 1 |
|
- | ||||
| 58 | 3160-0005 | Thermostat | 1 |
|
- | ||||
| 59 | 3160-0006 | Thermostat - Hood | 1 |
|
- | ||||
| 60 | 3215-0009 | Transformer | 1 |
|
- | ||||
| 61 | 2720-0008 | Ventilation Motor Co | 1 |
|
- |
