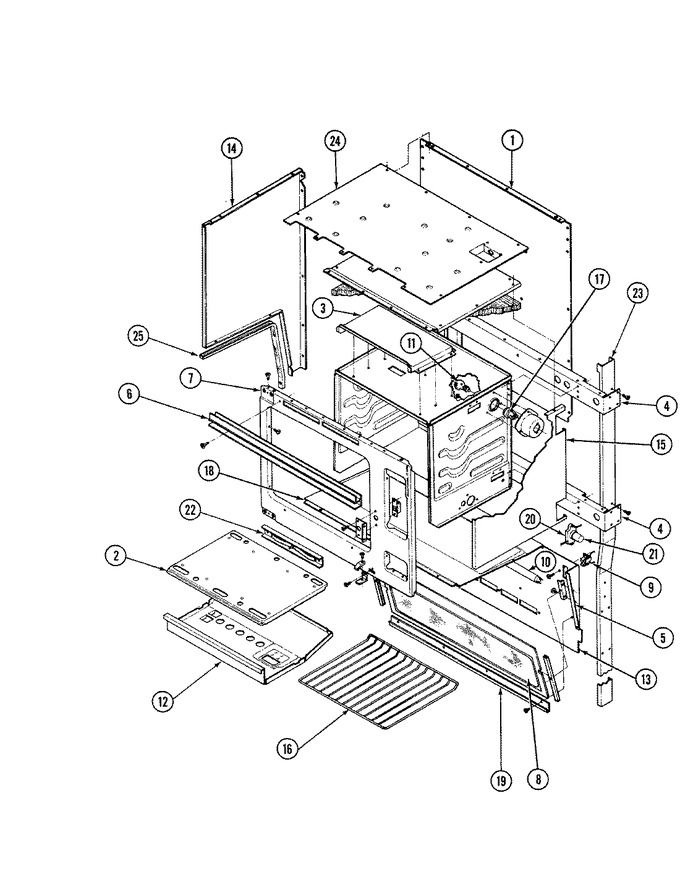

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F035-80		Back, Main	1	Appelez-nous	-
2	5720A001-17		Bottom, Oven	1	Appelez-nous	-
3	4006W018-23		Box Assy, Flue	1	Appelez-nous	-
4	3802F024-80		Brace	1	Appelez-nous	-
6	7706P035-60		Extrusion, Vent	1	Appelez-nous	-
7	2201F032-23		Front, Frame Oven	1	Appelez-nous	-
7	7201P008-60		Gasket	1	Appelez-nous	-
11	40A15		Bulb, Oven   (Replaces: 7407P026-60)	1		Immediately	$ 1.98
12	4009F001-45		Lining, Misc.	1	Appelez-nous	-
13	2612F021-32		Panel, Backsplash	1	Appelez-nous	-
14	2618F005-74		Panel, Side	1	Appelez-nous	-
15	2618F008-74		Panel, Side	1	Appelez-nous	-
16	7801P008-60		Rack	1	Appelez-nous	-
17	7408P001-60		Recept, Oven Light	1	Appelez-nous	-
18	3804F029-23		Retainer	1	Appelez-nous	-
19	3804F050-80		Retainer	1	Appelez-nous	-
22	5720A001-17		Bottom, Oven	1	Appelez-nous	-
23	3818F006-51		Support, Oven Side	1	Appelez-nous	-
24	2007W001-80		Top, Main Upper	1	Appelez-nous	-
25	7720P101-60		Trim	1	Appelez-nous	-
25	7720P102-60		Trim	1	Appelez-nous	-
