SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Controls


04 - Door (-7 Models)


05 - Drawer

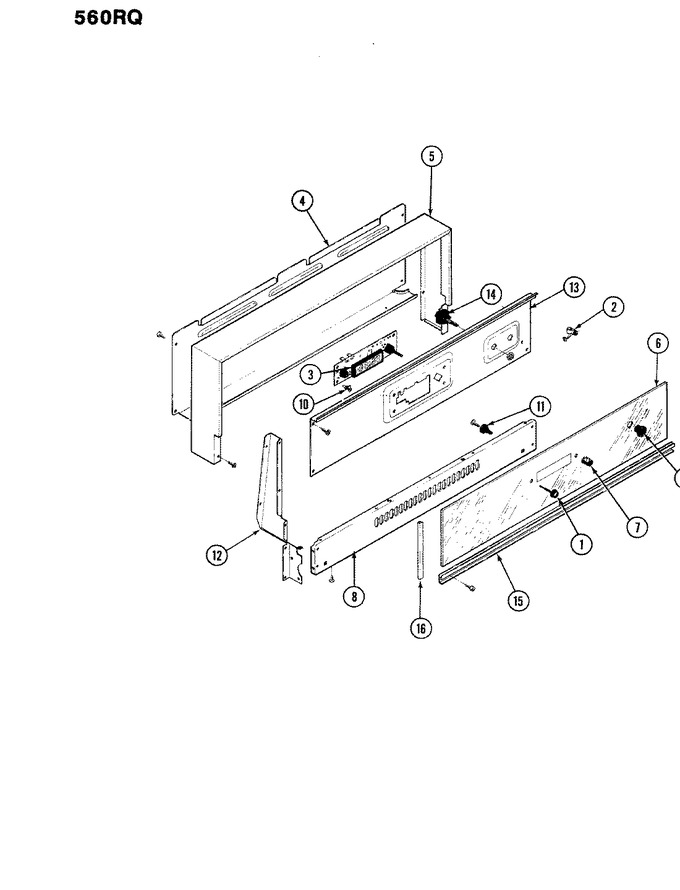

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7711P171-60		Knob, Clock (button-blk)	1			$ 19.90
2	7711P015-60		Knob, Thermostat	1	Appelez-nous	-
3	7601P132-60		Clock	1-36	Appelez-nous	-
3	7602P095-60		Clock	37	Appelez-nous	-
4	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
4	4005F213-51		Cover, Bkgd Wires	1	Appelez-nous	-
5	3603F026-70		Frame Bkgd	1	Appelez-nous	-
5	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
6	7910P088-60		Glass Bkgd	35	Appelez-nous	-
6	7910P038-60		Glass, Backguard	1-34	Appelez-nous	-
7	7711P172-60		Knob, Clock (blk)	1			$ 23.55
8	2620W044-90		Panel, Bkgd. Lwr (black)	1	Appelez-nous	-
9	7214P007-60		Sleeve, Switch (blk)	1	Appelez-nous	-
10	8010P037-60		Fastener, Spacer	1	Appelez-nous	-
11	8010P069-60		Spacer, Hinge (main Top)	1			$ 8.57
12	3807F341-51		Support, Bkgd (right)	1	Appelez-nous	-
12	3807F342-51		Support, Backguard (left)	1	Appelez-nous	-
12	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
13	3807F280-51		Support, Clock	1	Appelez-nous	-
14	7403P109-60		Switch, Push (blk)	1	Appelez-nous	-
15	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
15	7716P017-60		Trim, Backguard Bottom	1	Appelez-nous	-
16	7742P001-60		Trim, Glass Retainer	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
