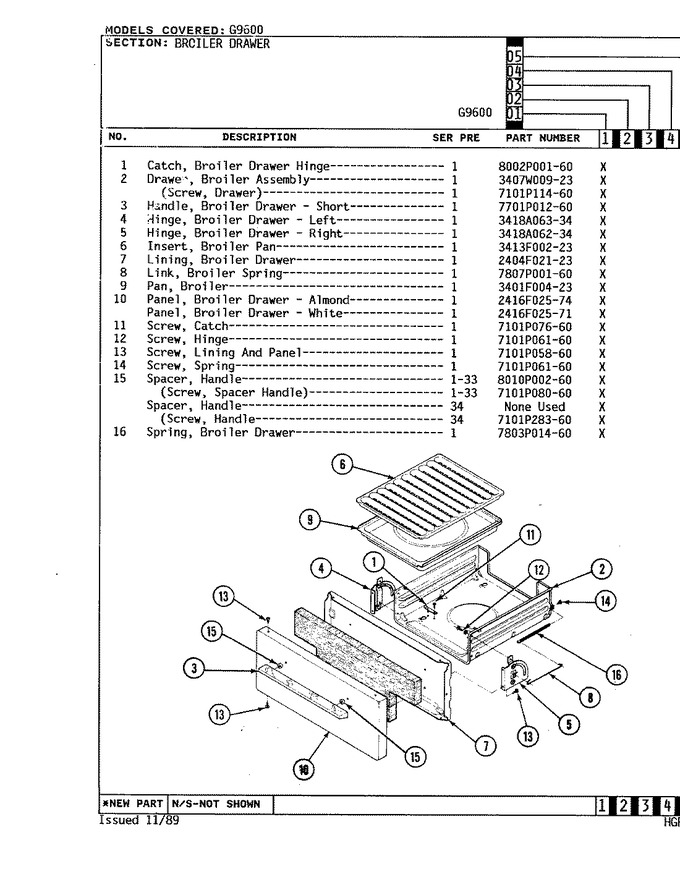

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002P001-60		Catch	1	Appelez-nous	-
2	7101P114-60		Screw	1	Appelez-nous	-
2	3407W009-23		Drawer, Broiler	1	Appelez-nous	-
3	7701P012-60		Handle, Drawer (chr)	1	Appelez-nous	-
4	3418A063-34		Hinge, Broiler (lt)	1	Appelez-nous	-
5	3418A062-34		Hinge, Broiler (rt)	1	Appelez-nous	-
6	3413F002-23		Insert, Broil Pan	1	Appelez-nous	-
7	2404F021-23		Lining, Broiler	1	Appelez-nous	-
8	7807P001-60		Link, Broiler	1	Appelez-nous	-
9	4396923		Pan, Broil   (Replaces: 3401F004-23)	1		Immediately	$ 52.04
10	2416F025-71		Panel, Drawer (wht)	1	Appelez-nous	-
11	WP74004005		Screw   (Replaces: 7101P076-60)	1			$ 6.95
12	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
13	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
15	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	1-33		Immediately	$ 7.69
15	8010P002-60		Spacer, Handle	1-33	Appelez-nous	-
15	74002481		Screw, Handle   (Replaces: 7101P283-60)	34			$ 5.82
16	7803P014-60		Spring	1	Appelez-nous	-
