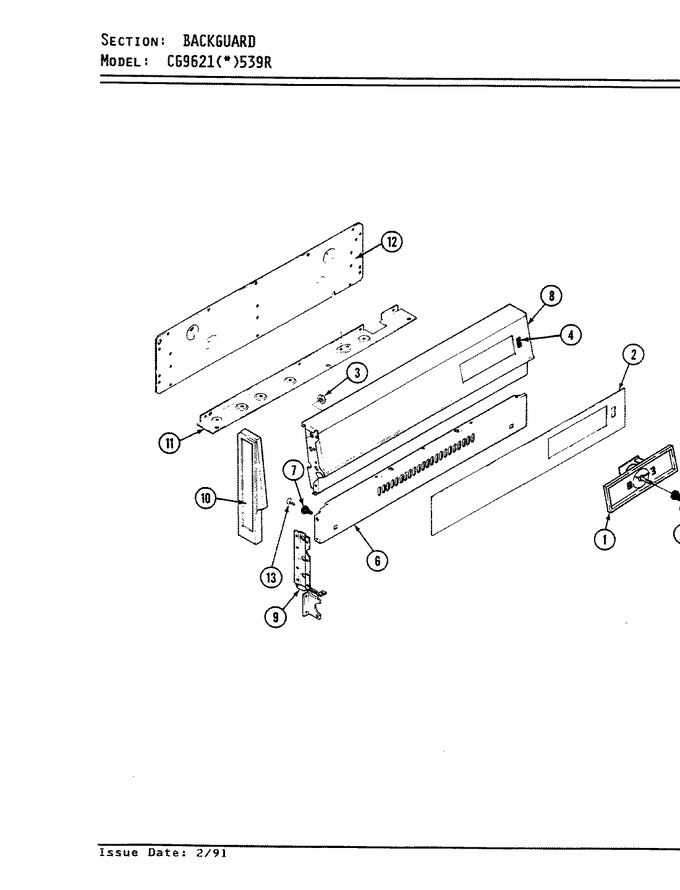

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P100-60 | Clock | 1 |
|
- | ||||
| 2 | 7703P248-60 | Trim, Inlay | 1 |
|
- | ||||
| 3 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 4 | 7718P009-60 | Plug, Hole | 1 |
|
- | ||||
| 5 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 2620W053-23 | Panel, Lower Bkgd. (blk) | 1 |
|
- | ||||
| 7 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 8 | 2601W114-84 | Backguard Assy, Alm | 1 |
|
- | ||||
| 9 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 9 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 9 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 10 | 7726P010-60 | End Cap, Backguard (lt-chr) | 1 |
|
- | ||||
| 10 | 7726P021-60 | End Cap, Backguard (rt-chr) | 1 |
|
- | ||||
| 11 | 4005F034-80 | Cover, Bottom | 1 |
|
- | ||||
| 12 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 6 |
|
$ 6.98 | ||||
| 12 | 4005F071-80 | Cover, Bkgd. Wire | 1 |
|
- | ||||
| 13 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 |
