01 - Body
02 - Control Panel
03 - Controls

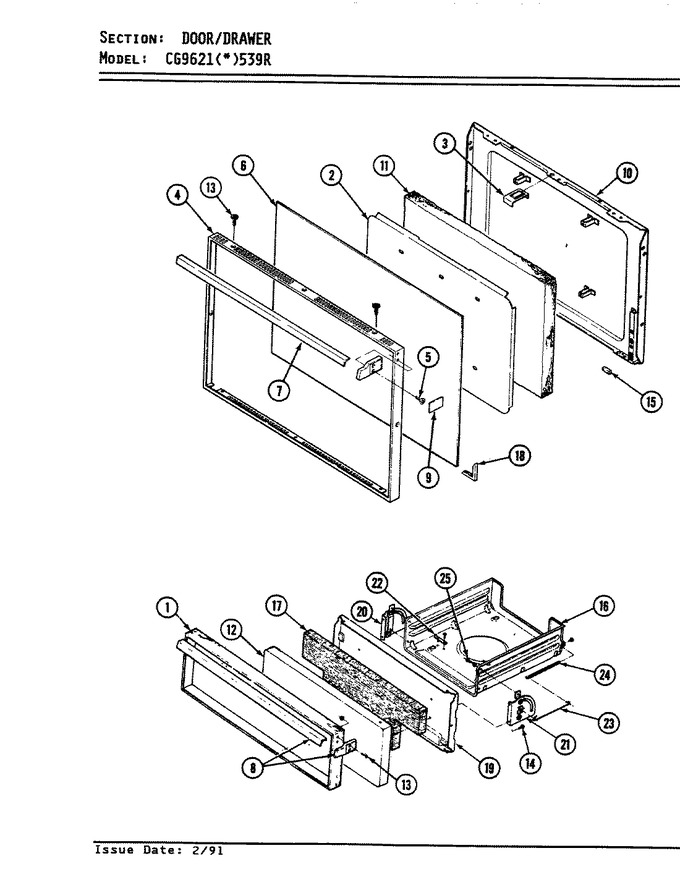

04 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7706P182-60 | Frame, Brl Dr | 1 |
|
- | ||||
| 2 | 3601F026-51 | Baffle | 1 |
|
- | ||||
| 3 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 4 | 7706P243-60 | Frame, Door | 1 |
|
- | ||||
| 5 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 6 | 7902P275-60 | Glass, Door | 1 |
|
- | ||||
| 7 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 8 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 8 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 9 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 10 | 2402W155-23 | Lining Assy, Oven Door | 1 |
|
- | ||||
| 11 | 7002P013-60 | Insulation | 1 |
|
- | ||||
| 12 | 2403F014-70 | Panel, Broiler Drwr | 1 |
|
- | ||||
| 13 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 1 |
|
Immediately | $ 6.85 | |||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 15 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 16 | 7101P114-60 | Screw | 1 |
|
- | ||||
| 16 | 3407W009-23 | Drawer, Broiler | 1 |
|
- | ||||
| 17 | 7002P002-60 | Insulation | 1 |
|
- | ||||
| 18 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- | ||||
| 19 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 19 | 2404F021-23 | Lining, Broiler | 1 |
|
- | ||||
| 20 | 3418A063-34 | Hinge, Broiler (lt) | 1 |
|
- | ||||
| 21 | 3418A062-34 | Hinge, Broiler (rt) | 1 |
|
- | ||||
| 22 | 8002P001-60 | Catch | 1 |
|
- | ||||
| 23 | 7807P001-60 | Link, Broiler | 1 |
|
- | ||||
| 24 | 7803P014-60 | Spring | 1 |
|
- | ||||
| 25 | WP74004005 | Screw (Replaces: 7101P076-60) | 1 |
|
$ 6.95 | ||||
| 25 | 7103P067-60 | Lock Nut, Catch | 1 |
|
- |
