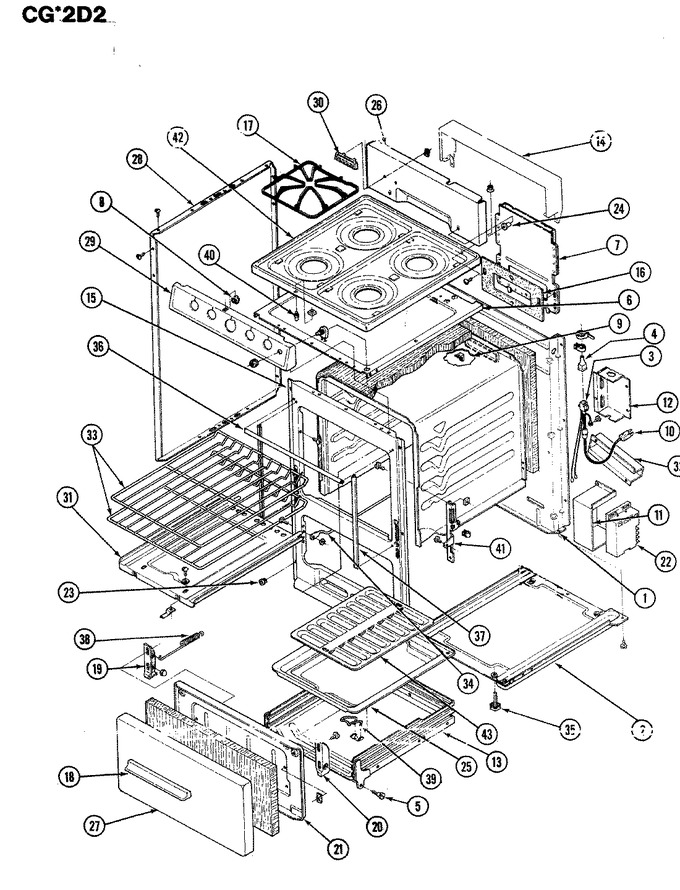

01 - Body
02 - Controls (cgx2d2k)
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F072-80 | Back Main | 1 |
|
- | ||||
| 2 | 4003A014-80 | Base, Main | 1 |
|
- | ||||
| 3 | 7401P021-60 | Block, Disconnect Ma | 1 |
|
- | ||||
| 4 | 7401P022-60 | Block, Disconnect Fe | 1 |
|
- | ||||
| 5 | 7101P243-60 | Bolt, Shoulder | 1 |
|
- | ||||
| 6 | 4011F102-80 | Bottom Burner Box | 1 |
|
- | ||||
| 7 | 4006W062-45 | Box Flue Vent | 1 |
|
- | ||||
| 8 | 8002P022-60 | Spring, Catch - Female | 1 |
|
- | ||||
| 8 | 3818F034-51 | Channel Air Side | 1 |
|
- | ||||
| 9 | 7112P053-60 | Clip, Capillary | 1 |
|
- | ||||
| 10 | 7402P018-60 | Cord, Power | 1 |
|
- | ||||
| 11 | 4005F228-51 | Cover Spark Module | 1 |
|
- | ||||
| 12 | 4005F285-51 | Cover | 1 |
|
- | ||||
| 13 | 3407W005-23 | Drawer Broiler | 1 |
|
- | ||||
| 14 | 3603F017-50 | Frame, Backguard | 1 |
|
- | ||||
| 15 | 2201W048-23 | Front, Main | 1 |
|
- | ||||
| 16 | 7201P038-60 | Gasket, Vent Deflect | 1 |
|
- | ||||
| 17 | 2003W001-00 | Grate | 1 |
|
- | ||||
| 18 | 7701P012-60 | Handle, Drawer (chr) | 1 |
|
- | ||||
| 19 | 3418F034-80 | Hinge, Broiler Drawer (lt) | 1 |
|
- | ||||
| 20 | 3418F035-80 | Hinge, Broiler Drawer (rt) | 1 |
|
- | ||||
| 21 | 2404F022-23 | Lining, Broiler Drawer | 1 |
|
- | ||||
| 22 | W10080180 | Nut (Replaces: 7103P034-60) | 1 |
|
$ 12.13 | ||||
| 22 | 7431P011-60 | Control, Ignitor | 1 |
|
- | ||||
| 23 | 7103P080-60 | Nut, Expansion | 1 |
|
- | ||||
| 24 | 7103P089-60 | Nut, Projection Weld | 1 |
|
- | ||||
| 25 | 4396923 | Pan, Broiler (Replaces: 3401F016-23) | 1 |
|
Immediately | $ 52.04 | |||
| 26 | 2601F210-84 | Panel, Control (alm) | 1 |
|
- | ||||
| 27 | 2403W019-74 | Panel, Drawer (alm) | 1 |
|
- | ||||
| 28 | 2618F070-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 29 | 2616F063-74 | Panel Manifold Alm | 1 |
|
- | ||||
| 30 | 7719P060-60 | Nameplate | 1 |
|
- | ||||
| 31 | 5720A003-23 | Plate, Oven Bottom | 1 |
|
- | ||||
| 32 | 3830F001-51 | Wire Raceway | 1 |
|
- | ||||
| 33 | 7801P019-60 | Rack, Oven | 1 |
|
- | ||||
| 34 | 3808F008-61 | Rod, Broiler Runner (rt) | 1 |
|
- | ||||
| 34 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 1 |
|
$ 5.82 | ||||
| 34 | 3808F007-61 | Rod, Broiler Runner (lt) | 1 |
|
- | ||||
| 35 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 36 | 7212P014-60 | Seal, Door (top) | 1 |
|
$ 48.10 | ||||
| 37 | 7212P015-60 | Seal, Door (side) | 1 |
|
$ 45.93 | ||||
| 38 | 7803P032-60 | Spring, Oven Door | 1 |
|
$ 4.83 | ||||
| 38 | 7803P033-60 | Spring, Broiler Drawer | 1 |
|
- | ||||
| 39 | 7809P004-60 | Stop, Broiler Drawer | 1 |
|
- | ||||
| 40 | 8024P003-60 | Strike, Main Top | 1 |
|
- | ||||
| 41 | 3807F290-34 | Support, Hinge (lt) | 1 |
|
- | ||||
| 41 | 3807F291-34 | Support, Hinge (rt) | 1 |
|
- | ||||
| 42 | 2001F050-84 | Top, Main (alm) | 1 |
|
- | ||||
| 43 | 4396923 | Tray, Broiler (Replaces: 3413F007-23) | 1 |
|
Immediately | $ 52.04 | |||
| NI | 8110P115-60 | Manual, Use & Care | 1 |
|
- |
