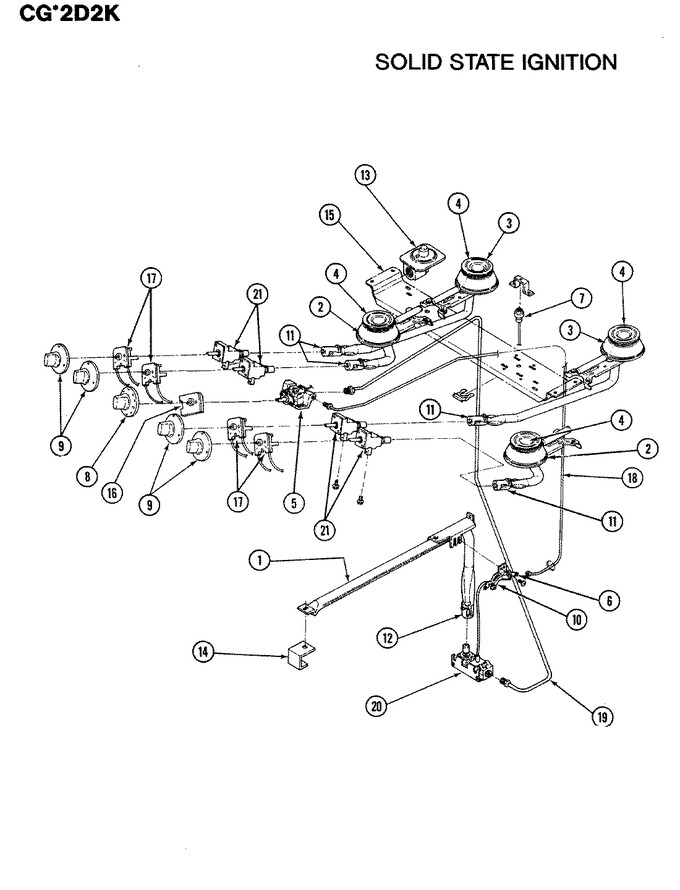

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3403A005-45 | Burner Oven Assy | 1 |
|
- | ||||
| 2 | 3403A004-35 | Burner Assy | 1 |
|
- | ||||
| 3 | 3403A010-35 | Burner Top Rear | 1 |
|
- | ||||
| 3 | 7504P003-60 | Baffle, Burner | 1 |
|
- | ||||
| 4 | 7504P004-60 | Cap Top Burner | 1 |
|
- | ||||
| 5 | 7515P022-60 | Control, Oven | 1 |
|
- | ||||
| 6 | 7432P035-60 | Igniter, Oven Burner | 1 |
|
- | ||||
| 7 | 7432P029-60 | Igniter, Top Burner (lt) | 1 |
|
- | ||||
| 7 | 7432P028-60 | Igniter, Top Burner (rt) | 1 |
|
- | ||||
| 8 | 7711P394-60 | Dial, Oven Control | 1 |
|
- | ||||
| 9 | 7733P015-60 | Knob, Valve | 1 |
|
- | ||||
| 10 | 7432P046-60 | Lighter, Oven Burner | 1 |
|
- | ||||
| 11 | 3411F003-34 | Mixer, Air | 1 |
|
- | ||||
| 12 | 7513P066-60 | Pipe, Manifold 3/4 S | 1 |
|
- | ||||
| 12 | 7431P011-60 | Control, Ignitor | 1 |
|
- | ||||
| 12 | 3411F006-34 | Mixer Air Oven Burner | 1 |
|
- | ||||
| 13 | 7510P022-60 | Regulator Pressure | 1 |
|
- | ||||
| 14 | 3807F304-45 | Support, Ov Lighter | 1 |
|
- | ||||
| 14 | 3807F311-80 | Support, Oven Valve | 1 |
|
- | ||||
| 14 | 3807F336-51 | Support, Burner | 1 |
|
- | ||||
| 15 | 3807F238-80 | Support Top Burner | 1 |
|
- | ||||
| 16 | 7403P146-60 | Switch, Oven Igniter | 1 |
|
- | ||||
| 17 | 7403P107-60 | Switch, Top Burner | 1 |
|
- | ||||
| 18 | 3414F015-44 | Tubing, Ov Cont 3/16 | 1 |
|
- | ||||
| 19 | 3414F044-44 | Tubing, 3/8 | 1 |
|
- | ||||
| 20 | 3807F311-80 | Support, Oven Valve | 01 |
|
- | ||||
| 20 | 7501P068-60 | Valve, Oven | 1 |
|
- | ||||
| 21 | 7502P081-60 | Valve, Top Burner-re | 1 |
|
- |
