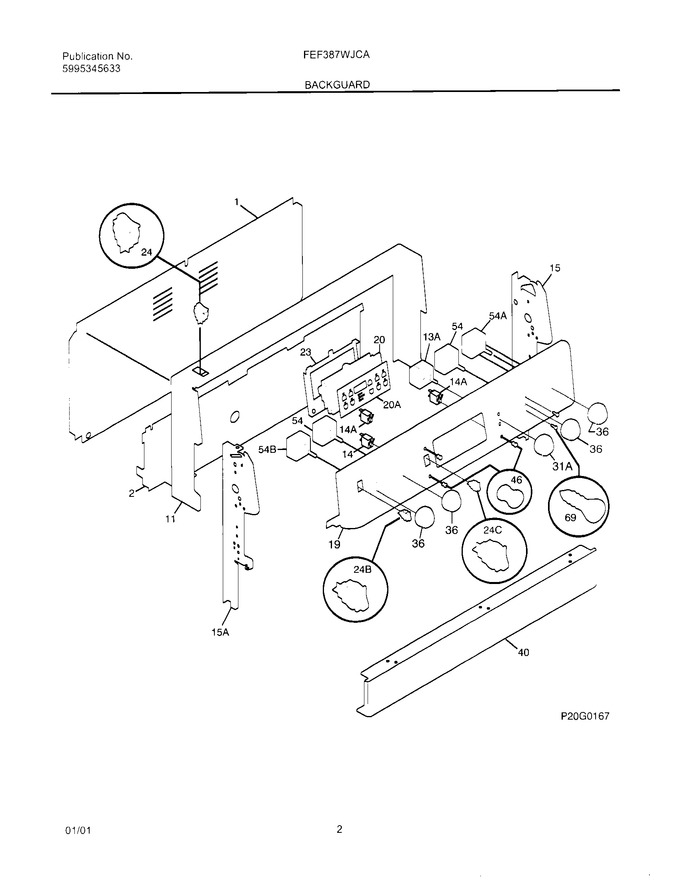

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083719		Trim-wrapper,textured ,black		Appelez-nous	-
14	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100596		Panel-control,assy ,stainless		Appelez-nous	-
20	316131602		Clock/timer,electronic ,20		Appelez-nous	-
23	316100301		Bracket-timer		Appelez-nous	-
24	316114003		Switch-rocker,oven Light ,gray ,24		Appelez-nous	-
24	316083100		Switch-rocker, Dual Element, Gray   (Replaces: 316086900)				$ 89.31
31	316095600		Knob-warmer, Black		Appelez-nous	-
36	316109606		Knob-control,black ,36				$ 36.91
40	316062216		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
54	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316101545		Overlay-clock,gray				$ 72.98
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316001759		Wiring Harness,surface Element		Appelez-nous	-
NI	316085600		Insulator		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
