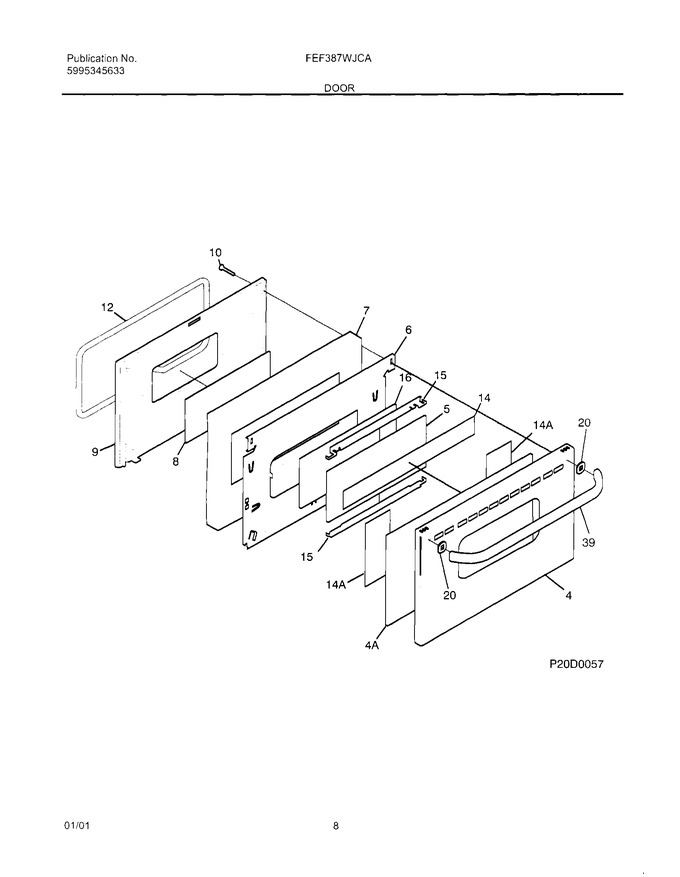

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316079300		Panel-oven Door, Stainless, Outer		Appelez-nous	-
4	316083900		Glass-oven Door, Outer		Appelez-nous	-
5	316088601		Glass-oven Door, Inner				$ 243.08
6	316088405		Shield-wool		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
8	316088701		Glass-oven Door, Airwash		Appelez-nous	-
9	316066610		Liner-oven Door		Appelez-nous	-
10	316001006		Screw-handle Mtg, 10-32		Appelez-nous	-
12	5303131601		Seal-oven Door				$ 374.63
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
14	3131360		Reflector, Aluminum Foil (2)		Appelez-nous	-
15	316081403		Bracket,glass Mtg		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
20	316133600		Spacer-handle,black ,20 ,(2)		Appelez-nous	-
39	316091117		Handle-door, Black, Oven		Appelez-nous	-
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.500 ,burner Box			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	316085500		Bracket-window		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
