SELECT A DIAGRAM

01 - Cover

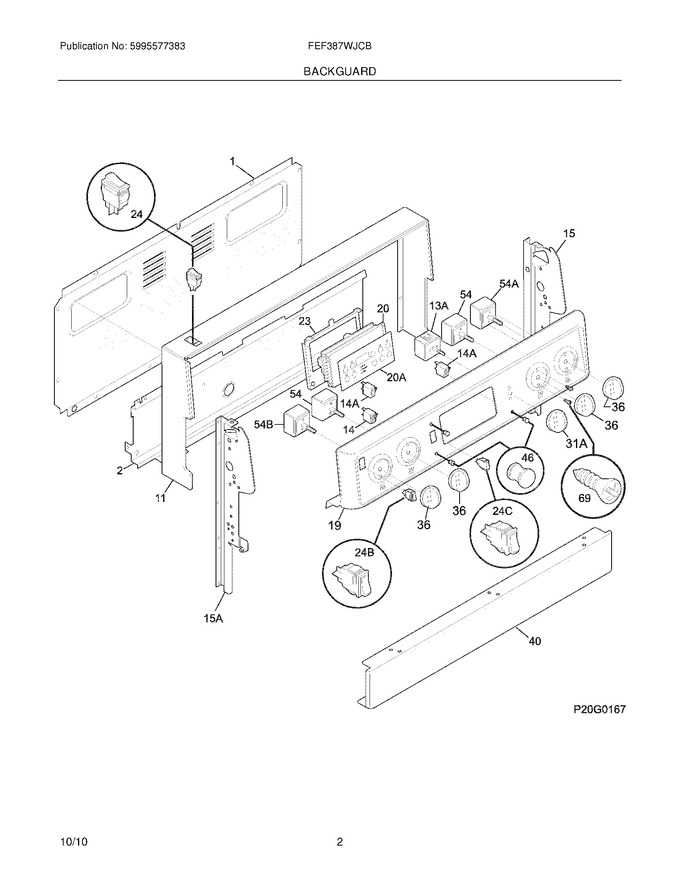

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield,backguard ,galv Steel ,rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083719		Trim,wrapper ,black		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100596		Panel-control,assy ,stainless		Appelez-nous	-
20	316131605		Clock/timer,electronic		Appelez-nous	-
23	316100301		Bracket-timer		Appelez-nous	-
36	316109606		Knob,control ,black				$ 36.91
40	316062216		Panel-manifold		Appelez-nous	-
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316023109		Support,backguard ,lh		Appelez-nous	-
20A	316101545		Overlay-clock,gray				$ 72.98
31A	316095600		Knob-warmer, Black		Appelez-nous	-
F24	5304527841		Switch,oven Light ,black ,rocker   (Replaces: 316118100)			Immediately	$ 11.38
F24B	316083100		Switch-rocker, Dual Element, Gray   (Replaces: 316086900)				$ 89.31
F24C	316114003		Switch-speed Bake,grey		Appelez-nous	-
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
F54B	5304528972		Switch,infinite ,single   (Replaces: 316049800)				$ 47.78
F54C	5304508926		Switch,infinite ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
