01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

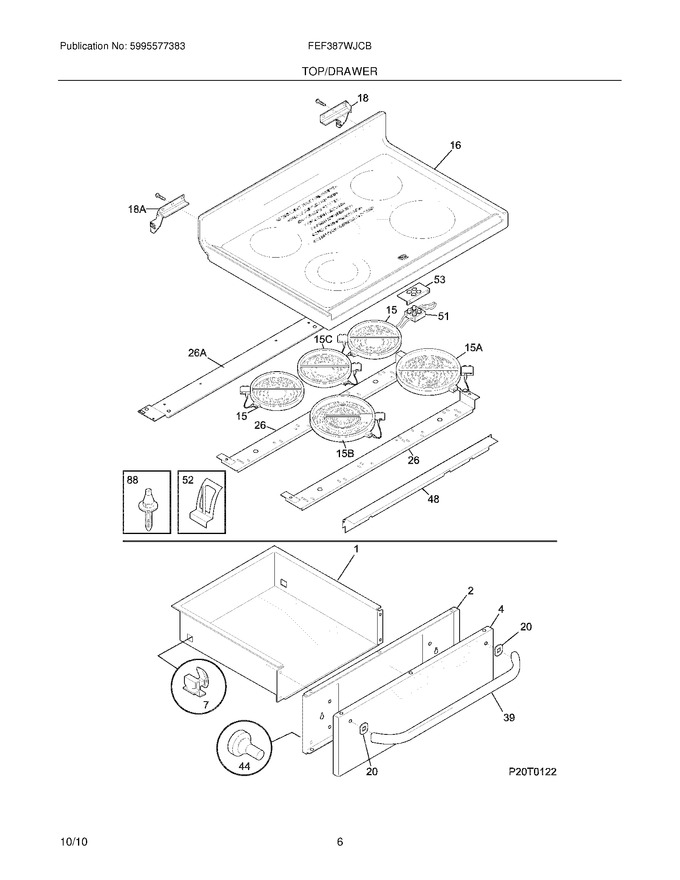

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer		Appelez-nous	-
2	5303288582		Liner,drawer ,galv Steel ,front Panel		Appelez-nous	-
4	316079401		Panel-drawer, Stainless		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316098180		Main Top Assy,glass/steel ,enamel ,black		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
20	316133600		Spacer-handle,black ,20 ,(2)		Appelez-nous	-
26	316099100		Channel,element Support ,galv Steel ,(2)		Appelez-nous	-
39	316091117		Handle-door, Black, Oven		Appelez-nous	-
44	3131903		Bumper,rubber				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip,element Mtg				$ 29.56
53	316099300		Bracket,indicator Light		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099200		Bracket,chassis Support ,rear		Appelez-nous	-
F15	318198834		Element,surface ,8`` ,2200 W ,radiant   (Replaces: 316010206)				$ 205.36
F15A	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15B	389082702		Element-surface,dual ,9`` ,15 ,2100w/1000w   (Replaces: 316049705)				$ 284.39
F15C	316098201		Element-warmer,100 W ,120 V		Appelez-nous	-
F51	316001759		Wiring Harness,surface Element		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316112101		Cleaner,cooktop		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
