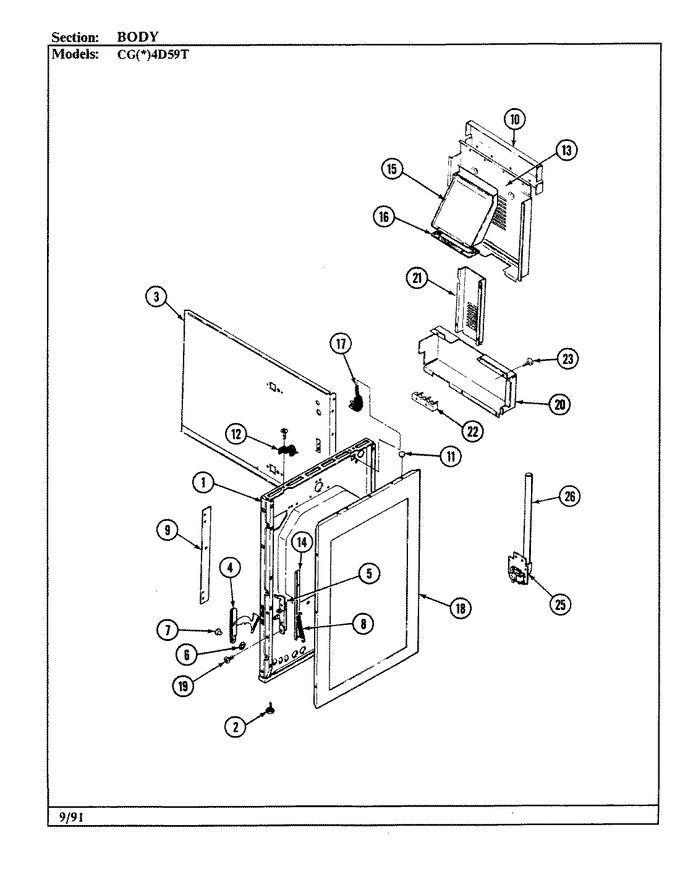

01 - Body
02 - Control Panel
03 - Control Panel
04 - Door/drawer
05 - Gas Controls
06 - Internal Controls
07 - Oven
08 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 1 | 4009W069-80 | Lining, Inner Side | 1 |
|
- | ||||
| 1 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 1 |
|
$ 4.29 | ||||
| 1 | 7103P045-60 | Nut, Nylon | 1 |
|
- | ||||
| 1 | 8008P012-60 | Grommet, Nylon | 1 |
|
- | ||||
| 2 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 3 | 8008P014-60 | Grommet, Nylon | 1 |
|
- | ||||
| 3 | 8008P012-60 | Grommet, Nylon | 1 |
|
- | ||||
| 3 | 4002F130-80 | Back, Main | 1 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 4 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 5 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 5 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 5 | 8016P008-60 | Glide, Oven Door Hinge | 1 |
|
- | ||||
| 6 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 7 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 8 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 1 |
|
$ 16.55 | ||||
| 9 | 3601F107-51 | Baffle, Flue Box Top | 1 |
|
- | ||||
| 11 | 8003P011-60 | Spacer, Main Top | 1 |
|
- | ||||
| 12 | 7112P073-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 13 | 3601F112-51 | Baffle, Flue Box | 1 |
|
- | ||||
| 14 | 3818F047-51 | Channel, Oven Support | 1 |
|
- | ||||
| 15 | 4006W026-23 | Box, Flue Assy | 1 |
|
- | ||||
| 16 | 7201P013-60 | Gasket | 1 |
|
- | ||||
| 17 | 8007P003-60 | Bushing, Snap | 1 |
|
- | ||||
| 17 | 7402P024-60 | Cord, Power | 1 |
|
- | ||||
| 17 | 7401P018-60 | Block | 1 |
|
- | ||||
| 18 | 2618F073-70 | Panel, Side (black) | 1 |
|
- | ||||
| 18 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 18 | 2618F073-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 18 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 18 | 2618F073-71 | Panel, Side (wht)----na | 1 |
|
- | ||||
| 19 | WP4159193 | Screw (Replaces: 7101P112-60) | 1 |
|
$ 4.29 | ||||
| 20 | 4005F174-80 | Cover, Module | 1 |
|
- | ||||
| 21 | 3818F032-80 | Channel - Air Duct | 1 |
|
- | ||||
| 22 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 23 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 24 | 3801F021-45 | Bracket | 1 |
|
- | ||||
| 25 | 7427P002-60 | Fan Assembly | 1 |
|
- | ||||
| 26 | 8026P006-60 | Tube, Air | 1 |
|
- |
