New Model Search:

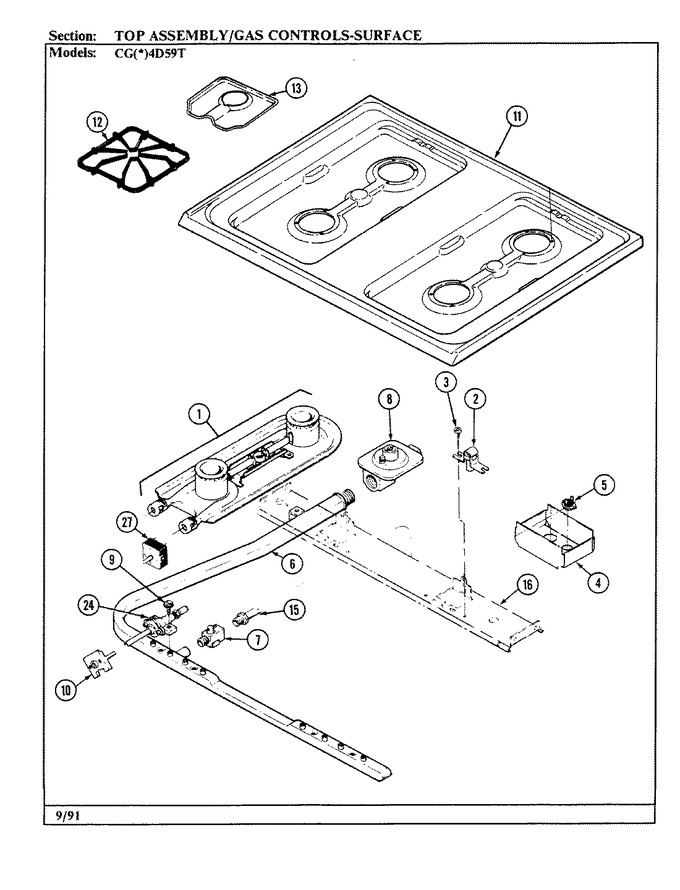

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3412A004-23 | Uni-burner Assy | 1 |
|
- | ||||
| 2 | 7432P015-60 | Igniter, Top Burner | 1 |
|
$ 53.77 | ||||
| 2 | 7432P008-60 | Igniter, Top (lt) | 1 |
|
- | ||||
| 3 | WP4159193 | Screw (Replaces: 7118P004-60) | 1 |
|
$ 4.29 | ||||
| 4 | 3807F219-51 | Support, Therm Disc | 1 |
|
- | ||||
| 5 | 7403P004-60 | Switch, Therm Lock | 1 |
|
- | ||||
| 6 | 7513P044-60 | Pipe, Manifold | 1 |
|
- | ||||
| 6 | 7513P103-60 | Pipe Manifold | 44 |
|
- | ||||
| 7 | 7502P002-60 | Valve, Shut Off | 1 |
|
- | ||||
| 8 | 7510P004-60 | Regulator, Pressure | 1 |
|
- | ||||
| 9 | 7101P296-60 | Screw | 44 |
|
- | ||||
| 9 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 10 | 7403P216-60 | Switch, Top Burner | 44 |
|
- | ||||
| 10 | 7403P259-60 | Switch | 57 |
|
- | ||||
| 10 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 1 |
|
$ 118.82 | ||||
| 11 | 2001F035-81 | Top, Main | 1 |
|
- | ||||
| 11 | 2001F035-84 | Top, Main | 1 |
|
- | ||||
| 12 | 7518P014-60 | Grate, Black | 1 |
|
- | ||||
| 13 | 04000043 | Gas Drip Tray Kit----na | 1 |
|
- | ||||
| 14 | 7502P111-60 | Valve, Burner | 1 |
|
- | ||||
| 14 | 7502P224-60 | Valve | 58 |
|
- | ||||
| 14 | 7502P145-60 | Valve, Top | 44 |
|
- | ||||
| 14 | 7214P003-60 | Sleeve | 1 |
|
- | ||||
| 15 | 3414F048-44 | Tubing, 3/8 X 51-1/2 | 1 |
|
- | ||||
| 16 | 3807F347-51 | Support, Top Burner | 1 |
|
- |
