01 - Body Assembly

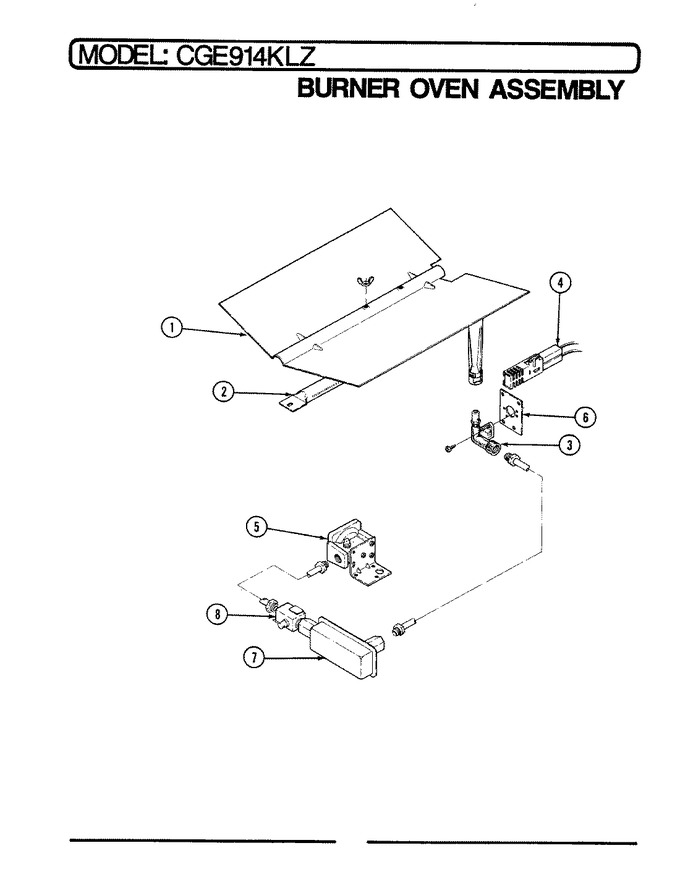

02 - Burner Assembly
03 - Control Panel
04 - Door (lower)
05 - Door (upper)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F101-45 | Baffle, Oven Burner |
|
- | |||||
| 2 | 7505P065-60 | Burner, Oven |
|
- | |||||
| 3 | 7507P008-60 | Fitting, Bake Bnr. |
|
- | |||||
| 4 | 12400035 | Igniter, Bake (Replaces: 7432P051-60) |
|
Immediately | $ 60.44 | ||||
| 5 | 7510P014-60 | Regulator, Pressure |
|
- | |||||
| 6 | 3807F122-34 | Support |
|
- | |||||
| 7 | 7501P018-60 | Valve, Bake |
|
- | |||||
| 8 | 7502P002-60 | Valve, Shut Off |
|
- |
