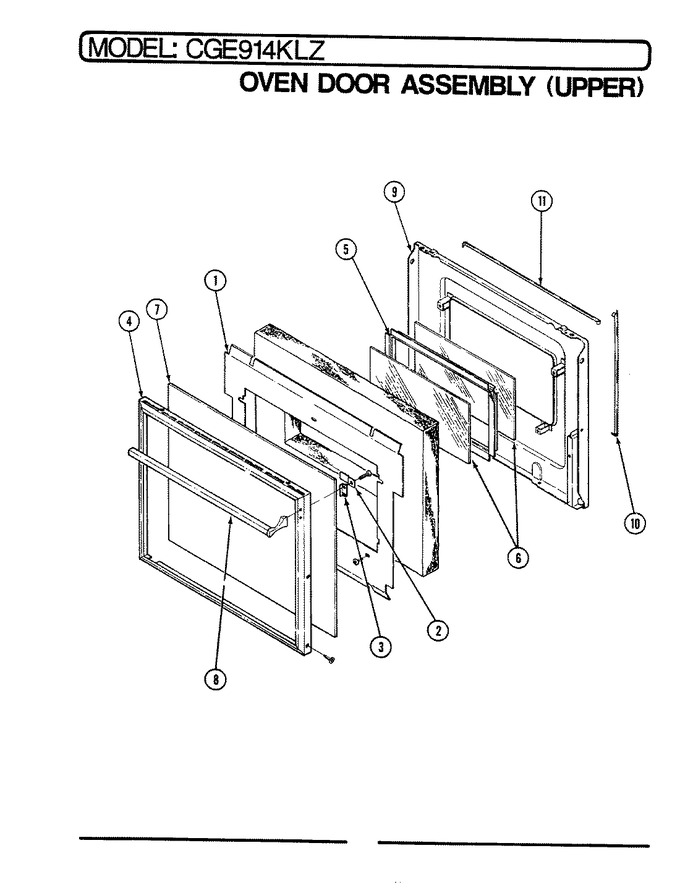

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Upper Door |
|
- | |||||
| 2 | 3819F003-34 | Clip |
|
- | |||||
| 3 | 7712P017-60 | Clip, Handle |
|
- | |||||
| 4 | 7706P220-60 | Frame, Door Upper |
|
- | |||||
| 5 | 3603F013-70 | Frame, Window |
|
- | |||||
| 6 | 7902P035-60 | Glass, Door Inner |
|
- | |||||
| 7 | 7902P264-60 | Glass, Door |
|
- | |||||
| 8 | 7701P017-60 | Handle, Door |
|
- | |||||
| 9 | 2402W133-17 | Lining, Door |
|
- | |||||
| 9 | 2402W099-16 | Lining Assy, Ov Dr |
|
- | |||||
| 10 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) |
|
$ 105.81 | |||||
| 11 | 7212P003-60 | Seal, Oven Door |
|
$ 46.94 |
