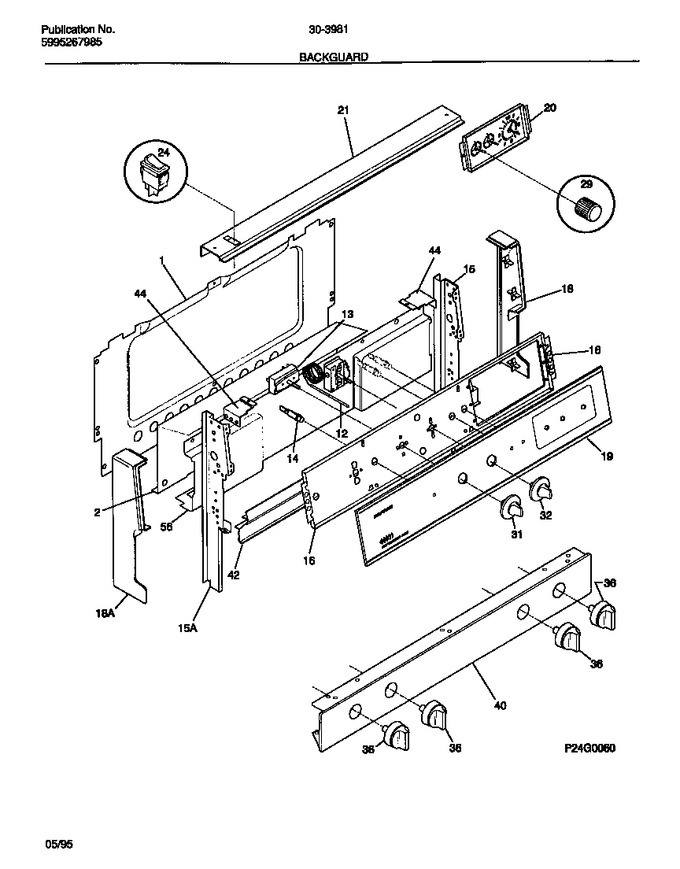

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038801		Shield-backguard, Inner		Appelez-nous	-
12	5303271746		Thermostat-oven				$ 414.28
13	5303212678		Switch Selector		Appelez-nous	-
15	316023114		Channel-support, Backguard Rh		Appelez-nous	-
15	5303288574		Screw, Plas. Tr Hd Sqdr, 8-10 X 3/8, (6) (not Illustrate		Appelez-nous	-
15	316023115		Channel-support, Backguard Lh		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316021800		Cap-end-rh				$ 81.32
18	316021801		Cap-end-lh				$ 94.29
20	5303210877		Clock/timer, Radial 3 Stem		Appelez-nous	-
21	5303283554		Trim Canopy/shield		Appelez-nous	-
24	5308015487		Switch,oven Light ,rocker				$ 61.43
29	316029000		Knob-clock, (3)		Appelez-nous	-
31	5303286099		Knob-selector		Appelez-nous	-
32	5303286098		Knob - Thermostat		Appelez-nous	-
36	5303209616		Knob-top Valve, (4)		Appelez-nous	-
40	5303269634		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
56	316014601		Deflector-flue		Appelez-nous	-
*41480	5303288480		Harness-backguard		Appelez-nous	-
14A	5308037896		Indicator Light				$ 39.75
14B	3201728		Light/lamp, Indicator, Red, Lock, Lock		Appelez-nous	-
19A	5303272840		Panel-control, Glass		Appelez-nous	-
19B	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
