SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Oven Door

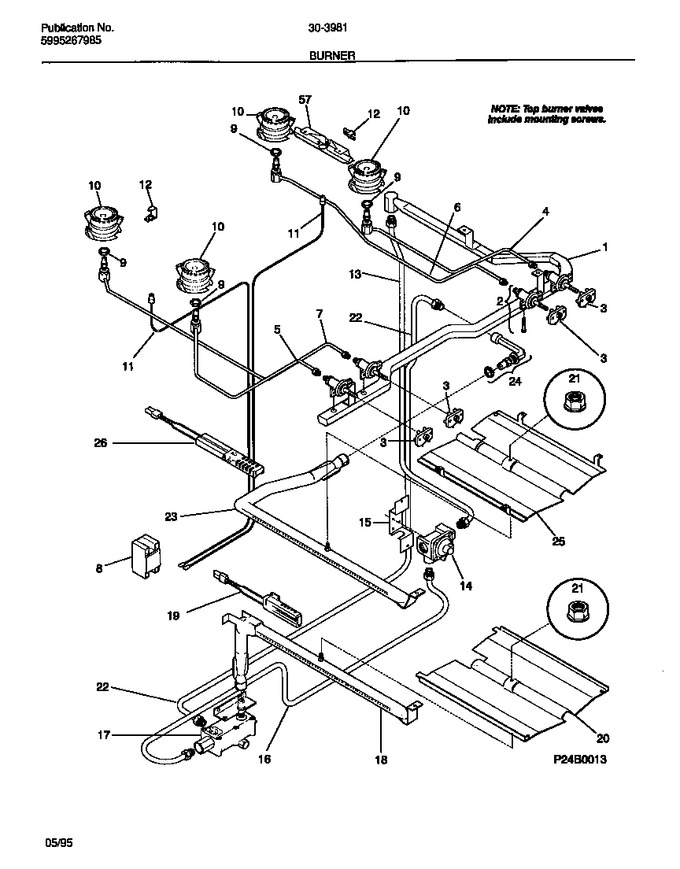

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316066201		Manifold Pipe				$ 65.47
2	316020401		Valve-top Burner, 3 Position, (4), W/screw				$ 138.86
3	316032000		Switch-igniter, (4)				$ 58.70
4	316051400		Tube-burner, Rf		Appelez-nous	-
5	316051401		Tube-burner, Lf				$ 147.84
6	316051402		Tube-burner, Rr		Appelez-nous	-
7	316051403		Tube-burner, Lr				$ 149.19
8	5303200669		Spark Module		Appelez-nous	-
9	3013279		Nut, Special, 4				$ 2.34
10	5303011567		Burner-top, Snap-in, (4)		Appelez-nous	-
11	5303283573		Igniter-top Burner, (2)		Appelez-nous	-
12	3018617		Retainer, Igniter		Appelez-nous	-
13	5303208495		Tube, Aluminum, Rgltr To Manf, With Fittings		Appelez-nous	-
14	5303935125		Regulator-pressure   (Replaces: 316054806)				$ 441.55
15	08067934		Bracket-regulator		Appelez-nous	-
16	5303208494		Tube-valve To Rgltr		Appelez-nous	-
17	5303208499		Valve-safety-dual			Immediately	$ 559.67
18	3131290		Burner-oven		Appelez-nous	-
19	5303935066		Igniter-oven			Immediately	$ 59.58
20	3131284		Baffle-oven Burner				$ 155.77
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5303208493		Tube-valve To Mixer		Appelez-nous	-
23	08067935		Burner-broiler				$ 142.59
24	5303208640		Mixer Elbow		Appelez-nous	-
25	5303210379		Baffle-broiler				$ 175.88
26	5303935068		Ignitor-broiler				$ 166.55
57	3206267		Channel-flash Tube				$ 46.04
*41481	08067947		Harness-ignitor Switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
