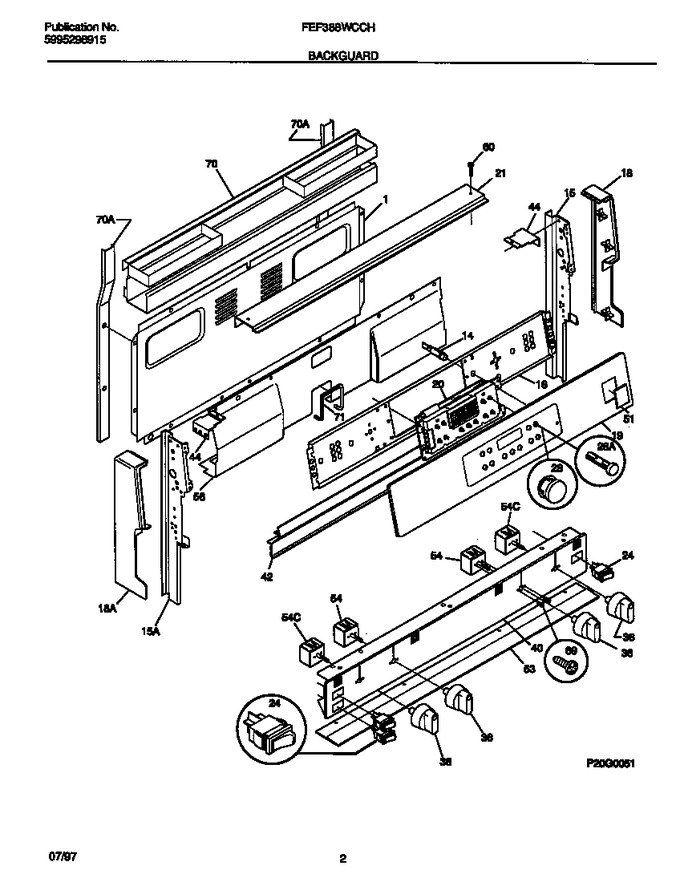

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
16	316042605		Plate, Instrument Mtg, Black		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
18	316021801		End Cap, Black, Lh				$ 94.29
19	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
19	316028347		Panel-control, Stainless		Appelez-nous	-
20	316080103		Clock/timer, Eoc				$ 333.53
21	316039204		Trim-canopy/shield, Black		Appelez-nous	-
24	316083100		Switch-rocker, Black, Lh, (2)				$ 89.31
24	316083101		Switch-rocker, Black, Rh, (1)				$ 85.01
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
29	316080600		Shaft-push Button, Clock/timer/eoc, Black (not Illustrat				$ 49.41
36	316084900		Knob-control, Black, (4)		Appelez-nous	-
36	3018008		Shield-inf Switch (not Illustrated)		Appelez-nous	-
40	316062364		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316074201		Nameplate, Gallery		Appelez-nous	-
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	5303935086		Switch-6`` Element, (2)   (Replaces: 316021500)			Immediately	$ 51.95
54	5304528972		Switch, Dual Element, (2)   (Replaces: 316049800)				$ 47.78
56	316074909		Deflector-flue		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
70	5303500001		Support, Spice Rack		Appelez-nous	-
70	316069700		Rack-spice, Stainless		Appelez-nous	-
71	316071901		Gasket-edge, Deflector B/g		Appelez-nous	-
*36320	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*36321	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*36322	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*36323	5303290288		Fastener		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
