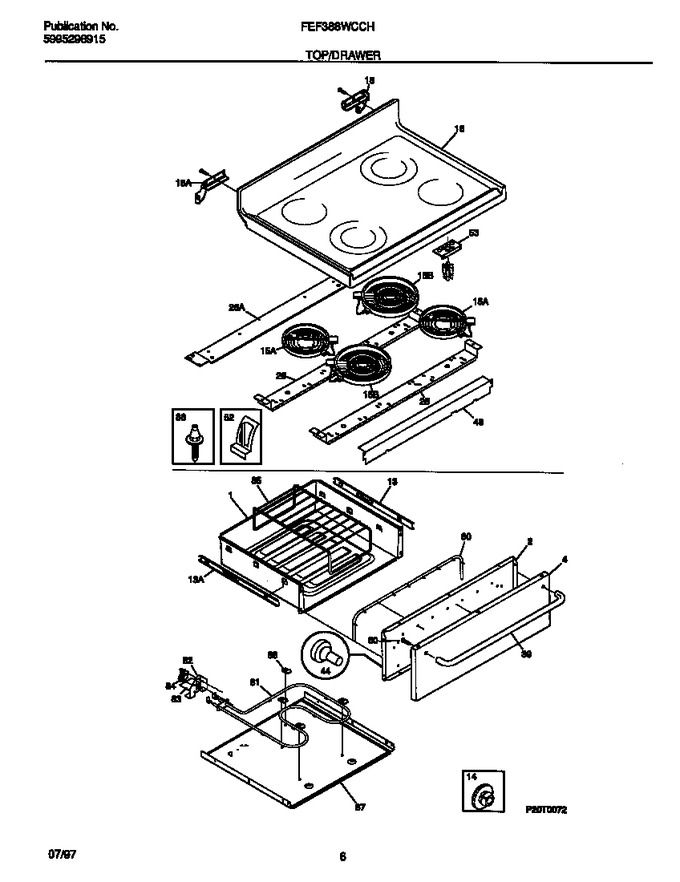

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316079401		Panel-drawer, Stainless		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198817		Element-surface, Radiant, Small/6 Inch, 1200w, (2), Limi   (Replaces: 316010203)			Immediately	$ 192.78
15	316049702		Element-surface, Dual, 9``, 2100w/700w, Limit Sw. Incl.		Appelez-nous	-
16	316098118		Main Top Assy, Glass/steel, Enamel, Black		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
44	3131903		Bumper				$ 55.36
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface		Appelez-nous	-
60	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
*36329	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*36330	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*36331	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*36332	5309951550		Cleaner-cooktop		Appelez-nous	-
*36333	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
