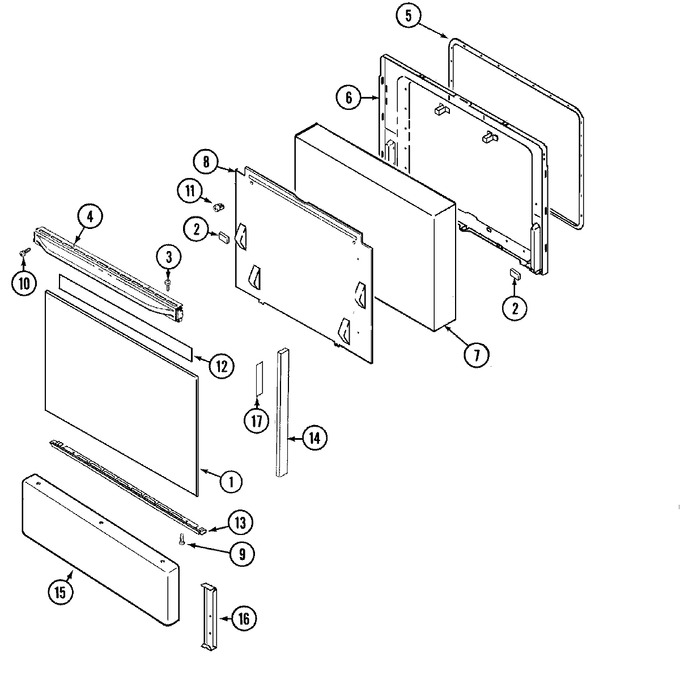

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P325-60		Glass, Door (outer-blk)	10	Appelez-nous	-
2	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
4	74003429		Handle, Door (blk)	10			$ 93.87
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
6	74003245		Lining, Door	10	Appelez-nous	-
7	74001842		Insulation, Door	10	Appelez-nous	-
8	3601F218-51		Baffle, Door Solid	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	7103P045-60		Nut, Nylon	10	Appelez-nous	-
12	8270P078-60		Tape, Foil (29 1/2``)	10	Appelez-nous	-
13	74003432		Trim, Bottom (blk)	10	Appelez-nous	-
14	74003430		End Cap, Door (blk)	10			$ 59.35
15	2403F034-71		Panel, Lower (wht)	10	Appelez-nous	-
16	3801F278-51		Bracket, Panel	10	Appelez-nous	-
17	74004075		Tape	10	Appelez-nous	-
