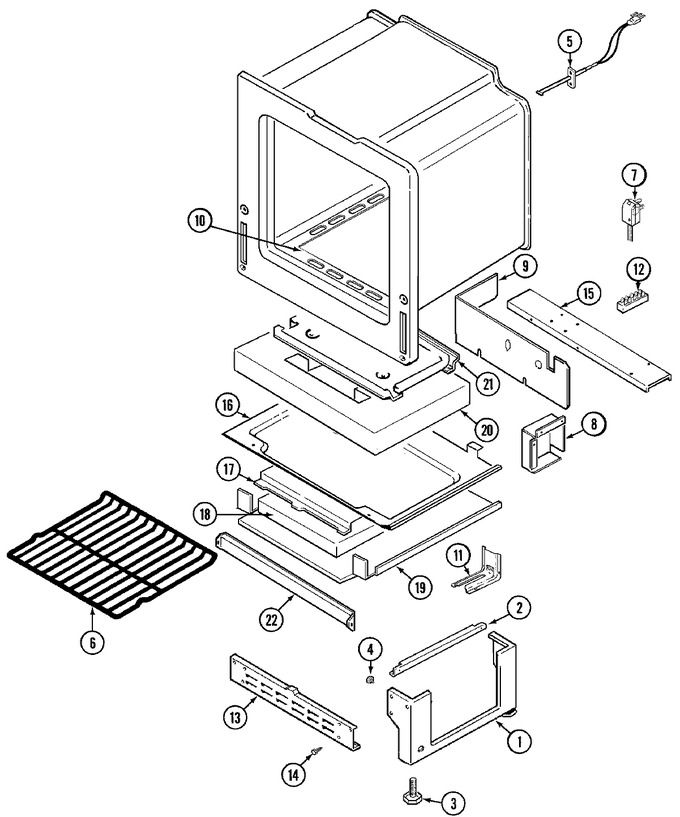

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003405 | Pedestal, Side | 10 |
|
- | ||||
| 2 | 74003565 | Runner, Drawer | 10 |
|
- | ||||
| 3 | W11665456 | Leg, Leveling (Replaces: 74002373) | 10 |
|
Immediately | $ 25.30 | |||
| 4 | 74003462 | Roller (w/shaft) | 10 |
|
- | ||||
| 5 | 12001655 | Probe, Oven Sensor (short) (Replaces: 74003413) | 10 |
|
Immediately | $ 41.01 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
Immediately | $ 65.15 | |||
| 7 | 7402P043-60 | Cord, Power | 10 |
|
- | ||||
| 8 | 3807F473-51 | Support, Spark Module | 10 |
|
- | ||||
| 9 | 74003329 | Cover, Burner Valve | 10 |
|
- | ||||
| 10 | 5504M004-19 | Bottom, Oven Assy. | 10 |
|
- | ||||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74002311) | 10 |
|
Immediately | $ 4.69 | |||
| 11 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 10 |
|
$ 26.33 | ||||
| 12 | 7401P037-60 | Block, Terminal | 10 |
|
- | ||||
| 13 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74002593 | Support, Valve/regulator | 10 |
|
- | ||||
| 16 | 74003242 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 17 | 3604F204-51 | Shield, Heat | 10 |
|
- | ||||
| 18 | 7002P140-60 | Insulation, Drawer & Shield | 10 |
|
- | ||||
| 19 | 3604F205-51 | Shield, Drawer | 10 |
|
- | ||||
| 20 | 74003503 | Insulation, Oven | 10 |
|
- | ||||
| 21 | 74001651 | Pan, Bake Burner | 10 |
|
- | ||||
| 22 | 74001219 | Baffle, Oven Front | 10 |
|
- |
