SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

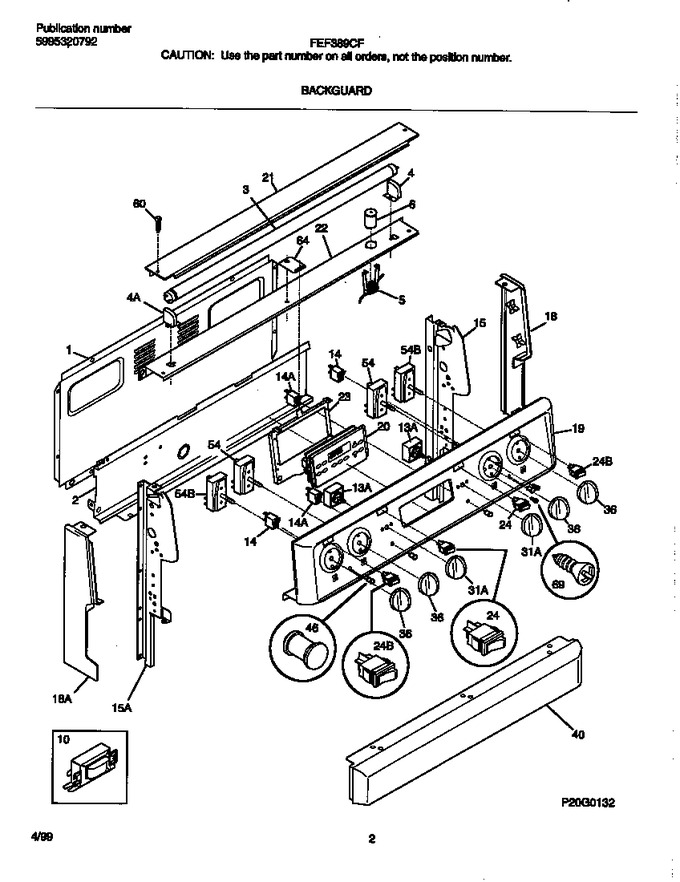

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051223		Receptacle-lamp, Lh		Appelez-nous	-
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	316099800		Ballast-lamp		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14	316022504		Light-indicator,250v		Appelez-nous	-
14	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
15	316049104		Support-backguard, Rh		Appelez-nous	-
15	316049105		Support-backguard, Lh		Appelez-nous	-
18	316026907		End Cap, Almond, Lh		Appelez-nous	-
18	316026906		End Cap, Almond, Rh		Appelez-nous	-
19	316024539		Panel-control, Almond		Appelez-nous	-
20	5303935117		Clock/timer, Eoc, Almond		Appelez-nous	-
20	316080010		Clock/timer,eoc		Appelez-nous	-
21	316024903		Trim-canopy/shield, Almond		Appelez-nous	-
22	316059901		Support-receptacle		Appelez-nous	-
23	316060002		Bracket-clock Mtg		Appelez-nous	-
24	316086902		Switch-rocker, Dual Element, Almond		Appelez-nous	-
24	316005608		Switch-rocker,oven Light ,almond		Appelez-nous	-
31	316095602		Knob-warmer, Almond		Appelez-nous	-
36	316025107		Knob-control, Infinite Sw, Almond, (4)		Appelez-nous	-
40	316025809		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
60	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
64	316062400		Retainer Plate		Appelez-nous	-
69	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*91721	316002645		Wiring Diagram		Appelez-nous	-
*91722	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*91723	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*91724	316021117		Screw-8-18x1/2 No. 5head Almond		Appelez-nous	-
*91725	316085600		Insulator-shield Thermostt		Appelez-nous	-
*91726	316112500		Template, Anti-tip Bracket				$ 3.55

    View Diagram in Separate Window       Print Part List
