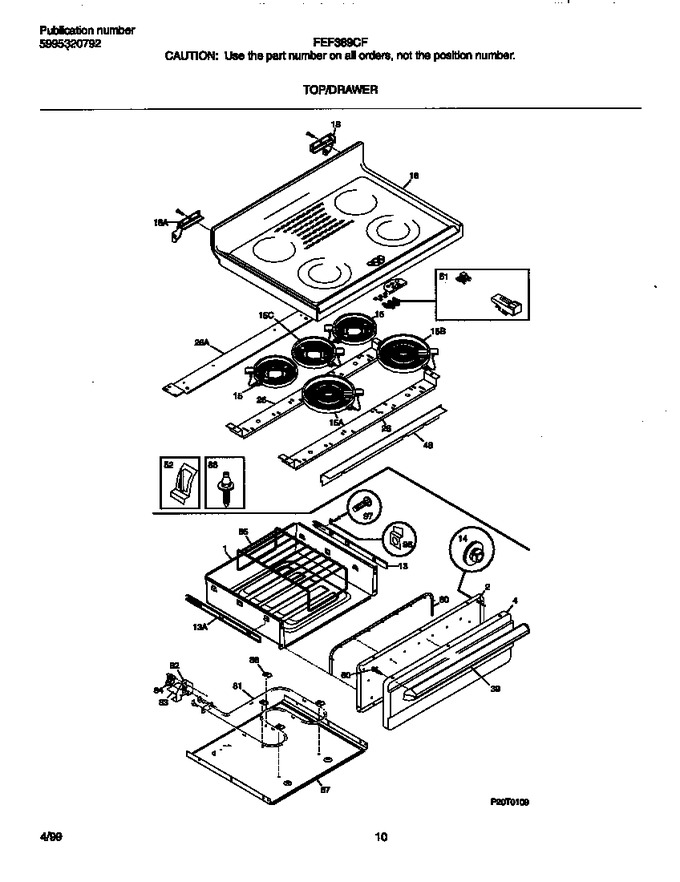

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316115901		Drawer,warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	316056202		Panel-drawer,almond		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
13	316105600		Glide-drawer,rear,rh		Appelez-nous	-
13	318259507		Glide-drawer, Inner, Lh   (Replaces: 316105601)			Immediately	$ 69.01
14	3206216		Plug-button, Glide		Appelez-nous	-
15	389082702		Element-surface, Radiant, Dual, 2100w/1000w, Limit Sw Incl   (Replaces: 316049703)				$ 284.39
15	316098200		Element-warmer, 120v/100w		Appelez-nous	-
16	316098121		Main Top, Glass, Almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
39	316026107		Handle-drawer,almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	316105200		Light-indicator, Hot Surface, Assy, (1)		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
60	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
80	316109700		Seal-door,warmer Drawer				$ 106.16
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093500		Thermo Disc,warmer Drawer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base-warmer				$ 221.55
88	316099500		Pin,guide ,(2)				$ 6.53
96	316122000		Clip-lock, Warmer Drawer				$ 14.12
97	316003802		Screw-hex Hd 3/16``, 6 X 3/8				$ 8.82
*91733	316001917		Harness-warmer Drawer				$ 66.31
*91734	316001918		Harness-main, Warmer Drawer		Appelez-nous	-
*91735	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*91736	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*91738	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*91739	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*91740	316112101		Cleaner,cooktop		Appelez-nous	-
*91741	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*91742	316001745		Harness-top Elements		Appelez-nous	-
10A	3205234		Insert, Broiler Pan		Appelez-nous	-
10B	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
15A	318198817		Element-surface,radiant , Small/6 Inch ,1200w,limit Sw Incl   (Replaces: 316010203)			Immediately	$ 192.78
15B	316049702		Element-surface,radiant ,9`` ,dual ,2100w/700w,limit Sw.incl.		Appelez-nous	-
