Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303272840 Glass-control Appelez-nous -
2 3204766 Clock Appelez-nous -
3 5303274449 Plate-instrument Appelez-nous -
4 5303272832 Cap-end, Rh Appelez-nous -
5 5303272831 Bracket-support B/g (2) Appelez-nous -
6 316023102 Channel-support B/g Rh Appelez-nous -
7 5303283554 Extrusion-pnl B/g Appelez-nous -
8 5303208662 Switch-oven Light Appelez-nous -
9 316023103 Channel-support-b/g Lh Appelez-nous -
10 5303272833 Cap-end, Lh Appelez-nous -
11 5308037896 Indicator Light Special Order $ 39.75

12 5303212678 Switch Selector Appelez-nous -
13 5303271746 Thermostat Special Order $ 414.28

14 3201728 Indicator Light-red Appelez-nous -
15 5303286099 Knob-selector Appelez-nous -
16 5303286098 Knob - Thermostat Appelez-nous -
17 3131472 Knob-clock Appelez-nous -
18 316028701 Shield-rear B/g Appelez-nous -
19 5303272855 Deflector Flue Appelez-nous -
20 5303272839 Extrusion-deflector Appelez-nous -
21 5303272845 Shield-inner B/g Appelez-nous -
*72584 5303272836 Clip - Backguard Appelez-nous -
*72584 316014401 Shield, Rear Wall Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

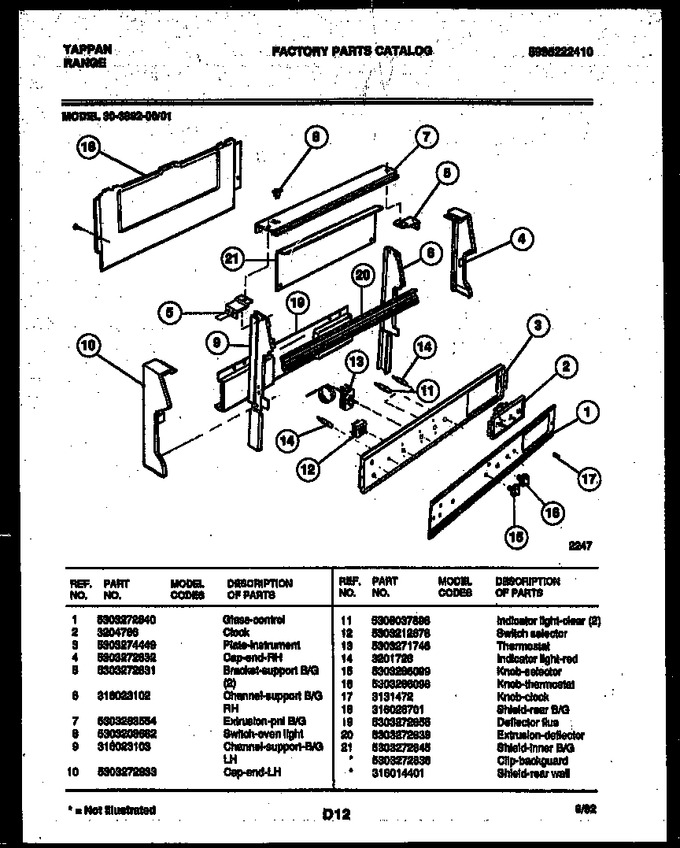

Diagram for 30-3982-00-01
