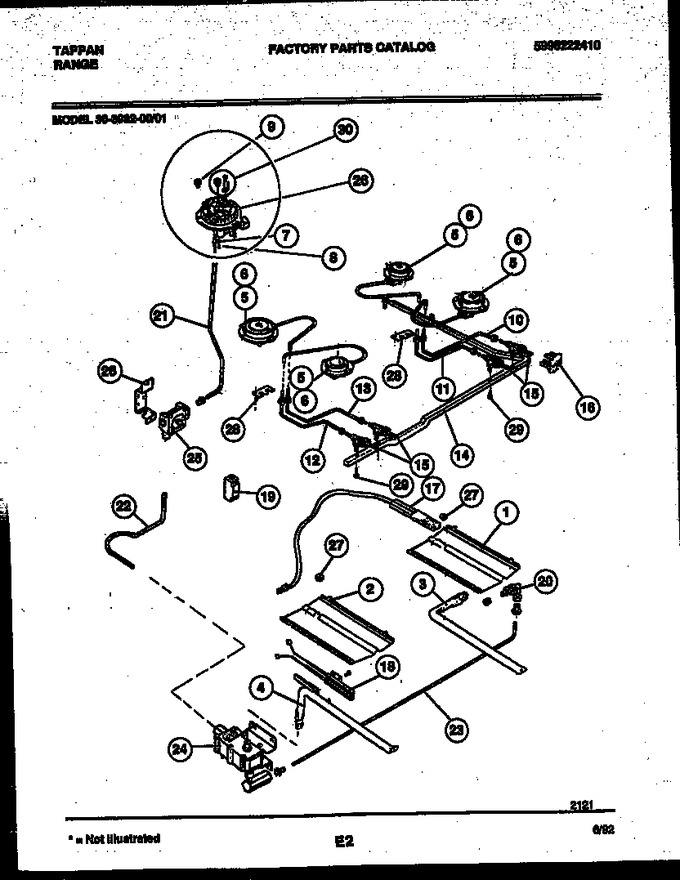

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210379		Baffle, Broil				$ 175.88
2	3131284		Baffle-oven				$ 155.77
3	08067935		Burner-broiler				$ 142.59
4	3131290		Burner-oven		Appelez-nous	-
5	316010600		Burner-assy (4)		Appelez-nous	-
6	316010700		Burner Top		Appelez-nous	-
7	316011200		Electrode & Brkt			Immediately	$ 38.68
8	316011100		Screw-electrode				$ 3.41
9	5303210090		Orifice				$ 54.18
10	5303269492		Burner Tube-rf		Appelez-nous	-
11	5303269494		Burner Tube-rr		Appelez-nous	-
12	5303269493		Burner Tube-lf		Appelez-nous	-
13	5303269495		Burner-tube Lr		Appelez-nous	-
14	5303271375		Manifold Pipe		Appelez-nous	-
15	316020400		Valve-top				$ 117.44
16	316032000		Switch-igniter				$ 58.70
17	5303935068		Igniter-broiler Burner   (Replaces: 5308067970)				$ 166.55
18	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
19	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
20	5303208640		Mixer Elbow		Appelez-nous	-
21	5303208495		Tubing Reg To Manifold Pipe W/fitting		Appelez-nous	-
22	5303208494		Tubing Valve To Regul		Appelez-nous	-
23	5303208493		Tubing Valve To Mixer		Appelez-nous	-
24	5303208499		Valve-safety-dual			Immediately	$ 559.67
25	5303280582		Control-regul		Appelez-nous	-
26	08067934		Brkt. Regul.		Appelez-nous	-
27	154079601		Nut   (Replaces: 5303013272)				$ 0.41
28	5303269491		Plate-burner Tube (2)		Appelez-nous	-
29	5303269845		Screw-valve Burner Mgt (4)		Appelez-nous	-
30	5303286386		Lp-conversion Kit				$ 143.29

    View Diagram in Separate Window       Print Part List
